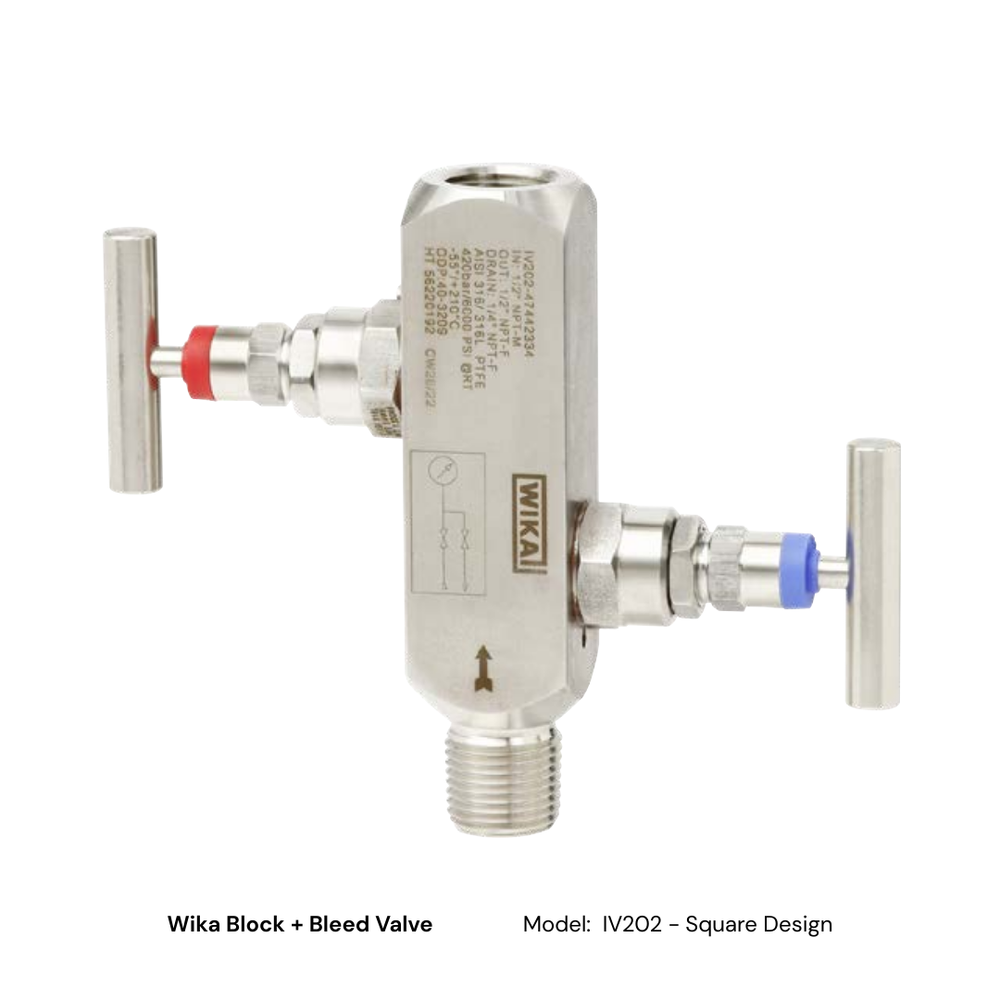

Wika Block + Bleed Valve
Wika Block + Bleed Valve - IV202.1/2"NPTFemale-1/2"NPTFemale A316 1/4"NPTF - Block + Bleed Valve_Square-Inline is backordered and will ship as soon as it is back in stock.
Description
Description
The Wika Block + Bleed Valve features the standard 2-valve manifold. The shut-off valve ensures separation between the process and measuring instruments, allowing for safe dismounting for services like calibration or replacement. The vent valve allows for safe venting prior to dismounting or for zero point checks, providing added safety during maintenance. Expertly designed for efficient and safe instrument usage.

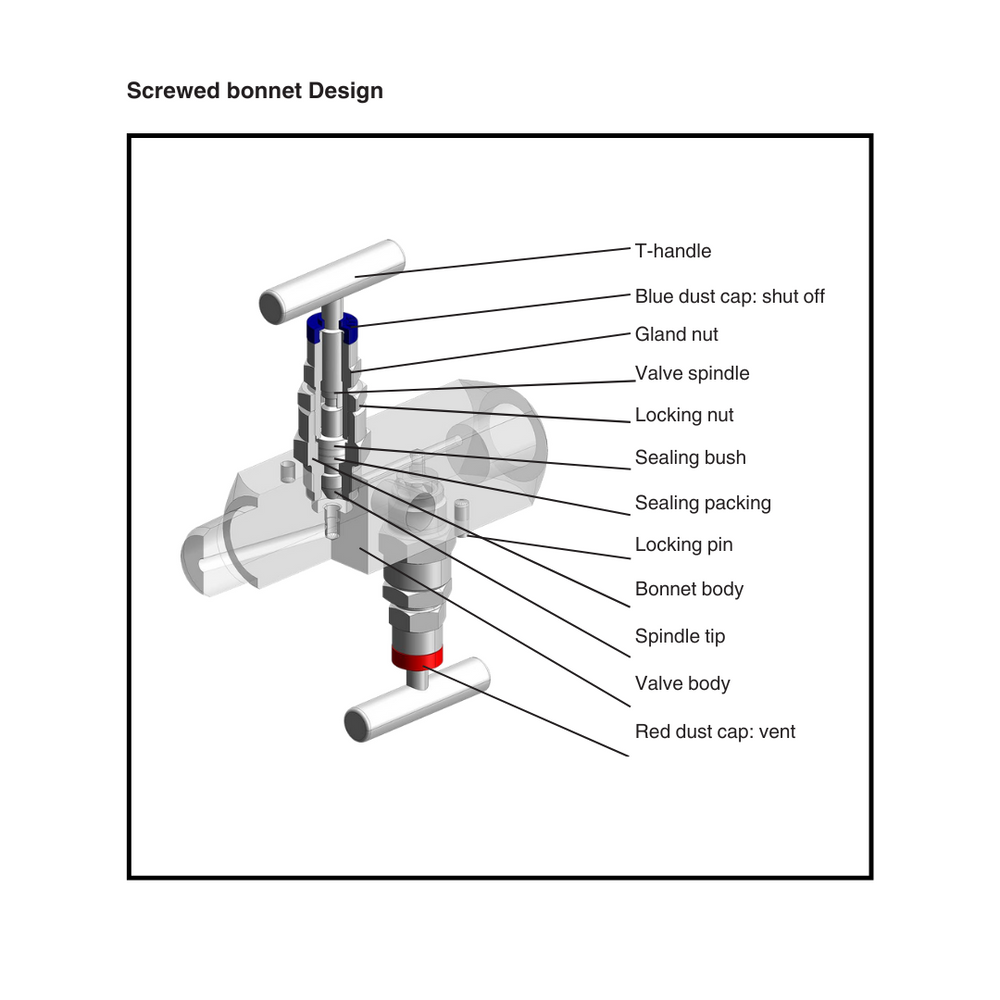

The non-rotating spindle tip reduces wear of the sealing elements. This results, particularly with frequent opening and closing, in a noticeable increase in the service life.
Applications
- Process industry: oil and gas, chemical and petrochemical industries, power generation, water and wastewater
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Shut off and vent pressure measuring instruments
Specifications
|
MODEL |
IV202 |
|
BLOCK & BLEED VALVE |
2-VALVE MANIFOLD |
|
DESIGN |
SQUARE, IN-LINE |
|
PROCESS CONNECTION |
SEE BELOW |
|
MATERIAL BODY |
STAINLESS STEEL 316 |
| VENT CONNECTION |
1//4" NPT FEMALE WITH PLUG |
| NOMINAL PRESSURE | 6000 psi / 420 bar AT 20°C |
|
MATERIAL PACKAGING |
PTFE |
|
TEMPERATURE RANGE |
-55°C ... +210 °C |
IV202 G1/2M-G1/2F A316 1/4NPTF PTFE 6k
Block and bleed valve, 2-valve manifold
Design: square, in-line
G 1/2 male - G 1/2 female
Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
Without bracket hole
Vent connection: 1/4" NPT female with plug
Nominal pressure: 6000 psi / 420 bar
Material packing: PTFE
NACE MR0175 Sour Gas Service & Inspection certificate 3.1, EN 10204, all wetted parts material
------------------------------------------------------------------------------------------IV202 1/2NPTM-1/2NPTF A316 1/4NPTF PTFE 6k
Block and bleed valve, 2-valve manifold
Design: square, in-line
1/2 NPT male - 1/2 NPT female
Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
Without bracket hole
Vent connection: 1/4" NPT female with plug
Nominal pressure: 6000 psi / 420 bar
Material packing: PTFE
NACE MR0175 Sour Gas Service & Inspection certificate 3.1, EN 10204, all wetted parts material
--------------------------------------------------------------------------------------------IV202 1/2NPTF-1/2NPTF A316 1/4NPTF PTFE 6k
Block and bleed valve, 2-valve manifold
Design: square, in-line
1/2 NPT female - 1/2 NPT female
Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
Without bracket hole
Vent connection: 1/4" NPT female with plug
Nominal pressure: 6000 psi / 420 bar
Material packing: PTFE
NACE MR0175 Sour Gas Service & Inspection certificate 3.1, EN 10204, all wetted parts material
