Novus | SKU: N154012V

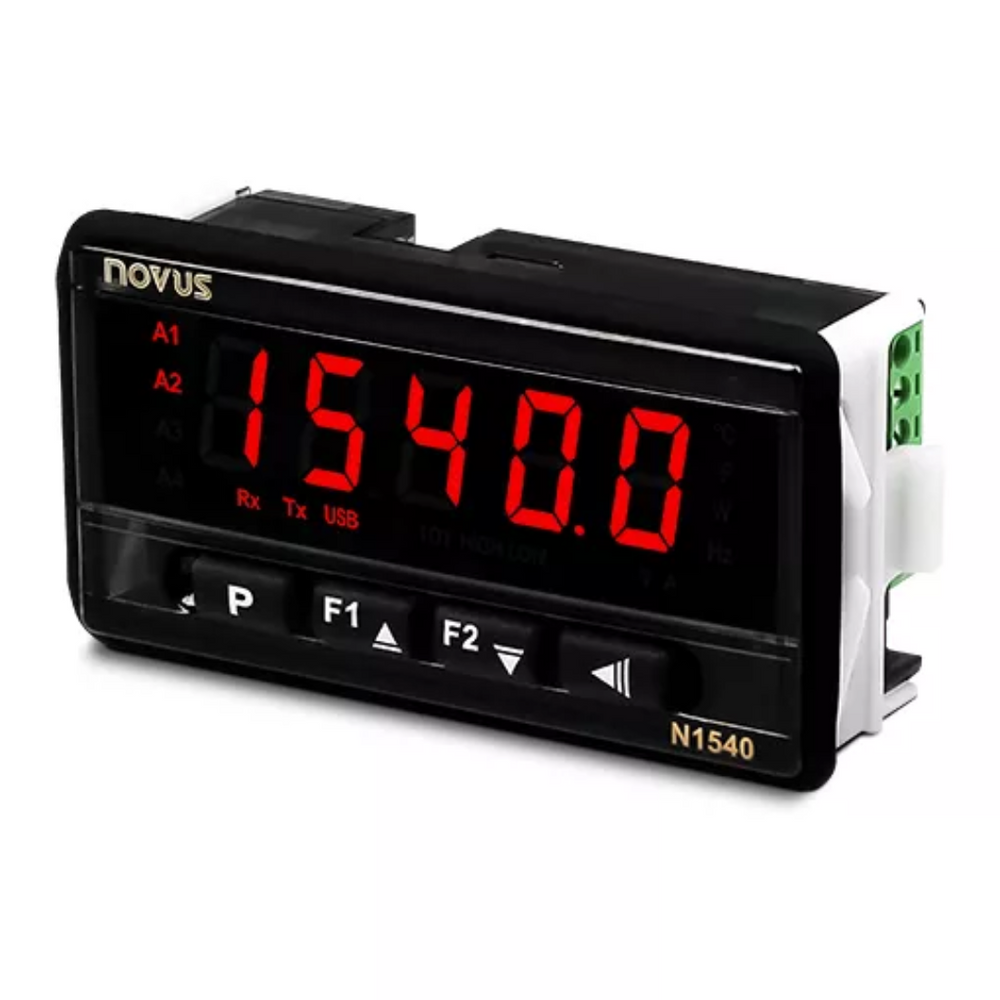

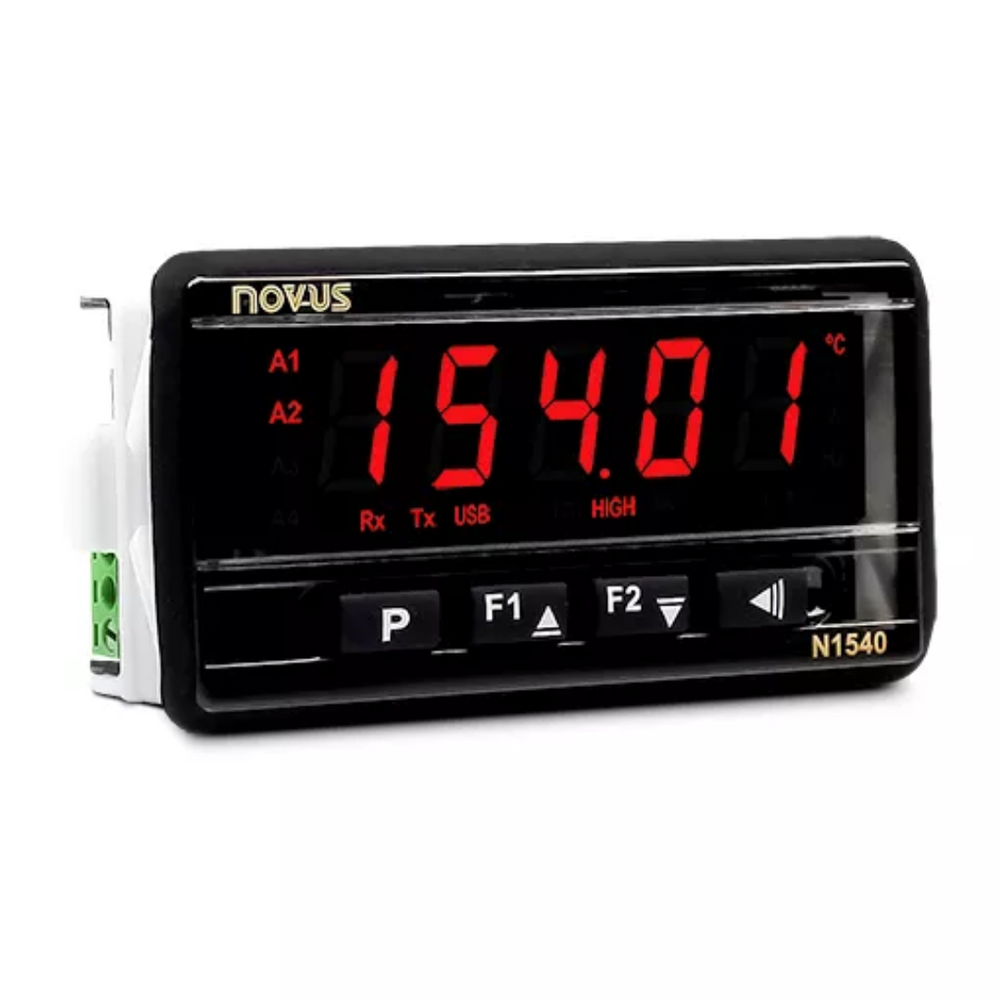

Novus Universal Input Panel Meter N1540

$231.18

Shipping calculated at checkout.

Power Supply

Product variants

Description

The Novus Universal Input Panel Meter N1540 delivers precise, high-speed sampling for accurate monitoring of rapidly changing processes. Featuring a clear 5-digit, 17mm high display, it ensures easy readability from a distance, aiding quick diagnostics. Built with robust electronics and housed in an anti-flame enclosure, the N1540 meets leading international industry standards, making it a reliable choice for demanding industrial environments.

SPECIFICATIONS

Input Type	Thermocouples J, K, T, N, R, S, B, E, Pt100, 0-20 mA, 0-50 mV, 0-5 Vdc, 0-10 Vdc
Accuracy	Thermocouples J, K, T: 0.2% of span ± 1 ° C Thermocouples N, R, S, B: 0.2% of span ± 3 ° C Pt100, 0-20 mA, 4-20 mA, 0- 5 Vdc, 0-10 Vdc: 0.2% of span
Analog Output	0-20 mA or 4-20 mA (optional) - electrically isolated (accuracy 0.15% of span)
Alarm Types	Minimum, maximum, minimum differential, maximum differential, differential out of range, sensor open
Dimensions	96 x 48 x 34 mm (1/8 DIN)
Front Panel	IP65 Polycarbonate (PC) UL94 V-2
Enclosure	IP30 PC UL94 V-2
Operating Conditions	0 to 50 ° C, and 0 to 80% RH up to 30 °C
