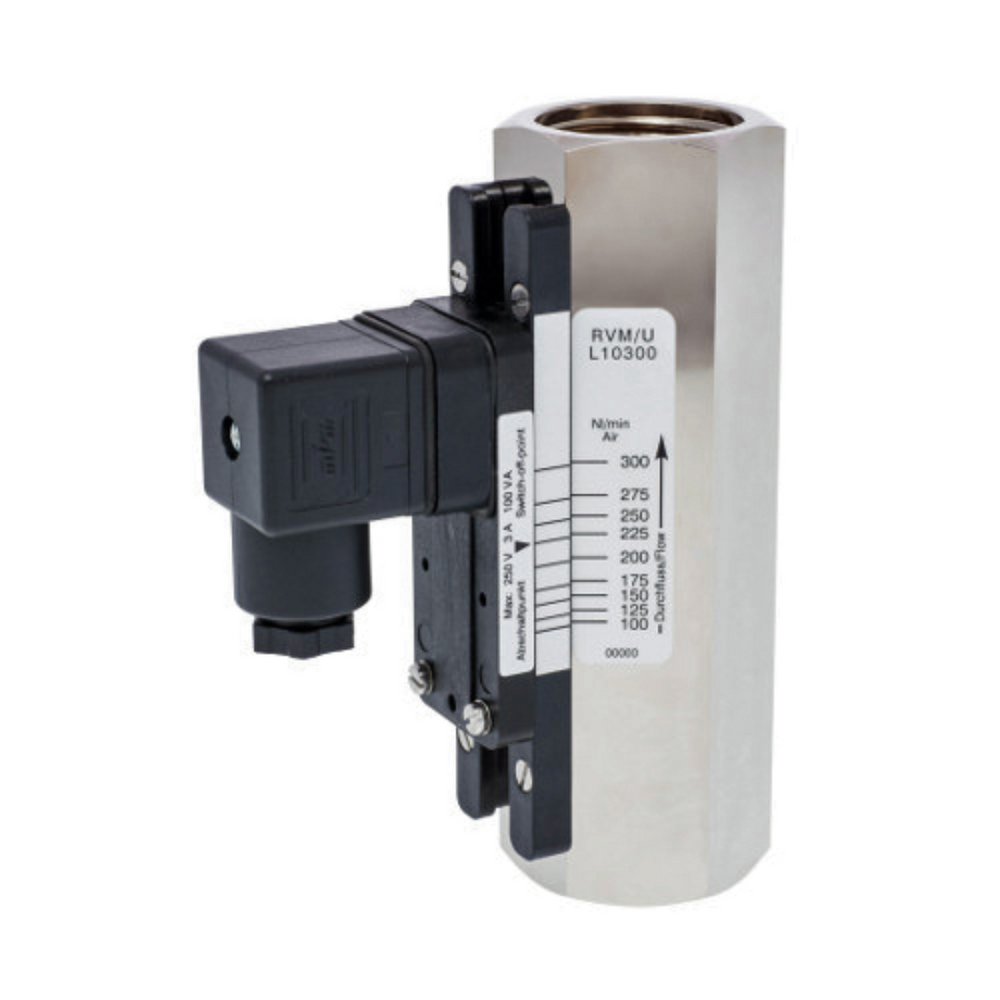

Meister Flow Monitor Switch for Air & Gases RVM/U-L1 - High Ranges

The Meister RVM/U-L1 Flow Switch Monitor is designed to be mounted inline in your pipework, to provide a switch point at your specific flow rate. These Flow Switches are ideal for small pipes where Vane Type Flow Switches aren’t practical to fit. The Flow Switch Monitors operate on a Float measuring principal and can be installed in any orientation.

The RVM/U-L1 Series are non-indicating flow switches and are only suitable for air and compatible gases.  We have other models for water and oils.

  • Applications include but not limited to, pneumatic systems, aeration circuits
  • Solid Body Construction, compact In-Line; Adjustable Switch Point
  • 1” Port Connections; Brass or Stainless Body material
  • Brass rated to 250 BAR, Stainless rated to 300 BAR

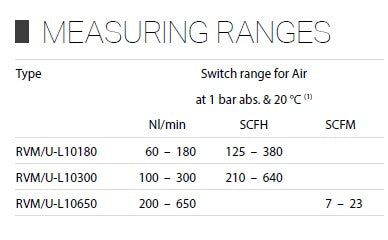

  • Ranges for air/gases from 60 up to 650 N/LPM (air)
  • Normally Open (SPST) or Change-Over Contact (SPDT) Output
  • Options include: EX-Proof to ATEX; High Temperature
