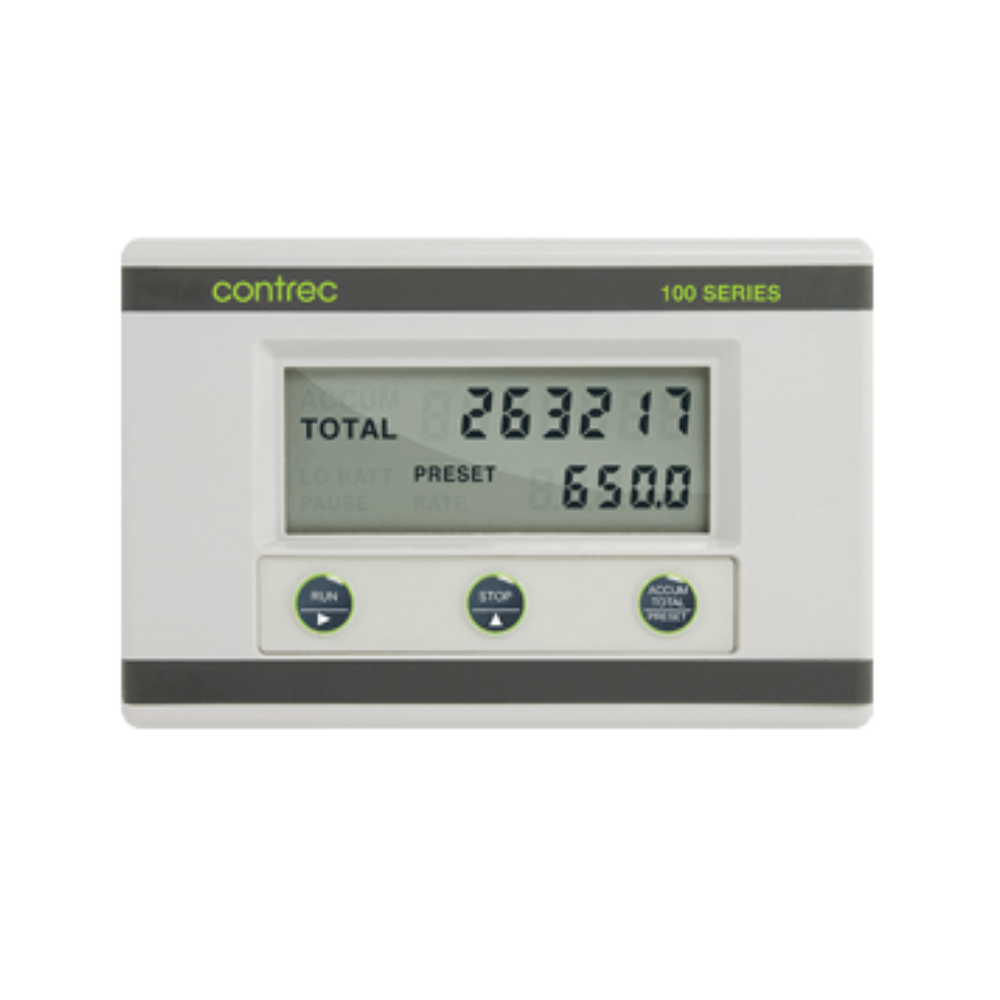

Contrec Digital Batch Controller – Pulse Input – DC Powered - 114D
(Prices exclude GST)
Contrec Digital Batch Controller – Pulse Input – DC Powered - 114D - Contrec Batch Controller – Pulse Input – DC Powered - With Wall Mounting (Standard glands) / None is backordered and will ship as soon as it is back in stock.
Description
Description
The 114D DC Powered Digital Batch Controller is designed to operate with virtually any pulse/frequency generating flowmeters including Turbine, Positive Displacement, Electromagnetic and Coriolis.
The 114D DC Powered Digital Batch Controller is designed for flow applications where the precise control of batch quantities is required. Batch Total, Accumulated Total and Preset values can all be displayed on the large LCD display.
- Powered by 9…28 VDC

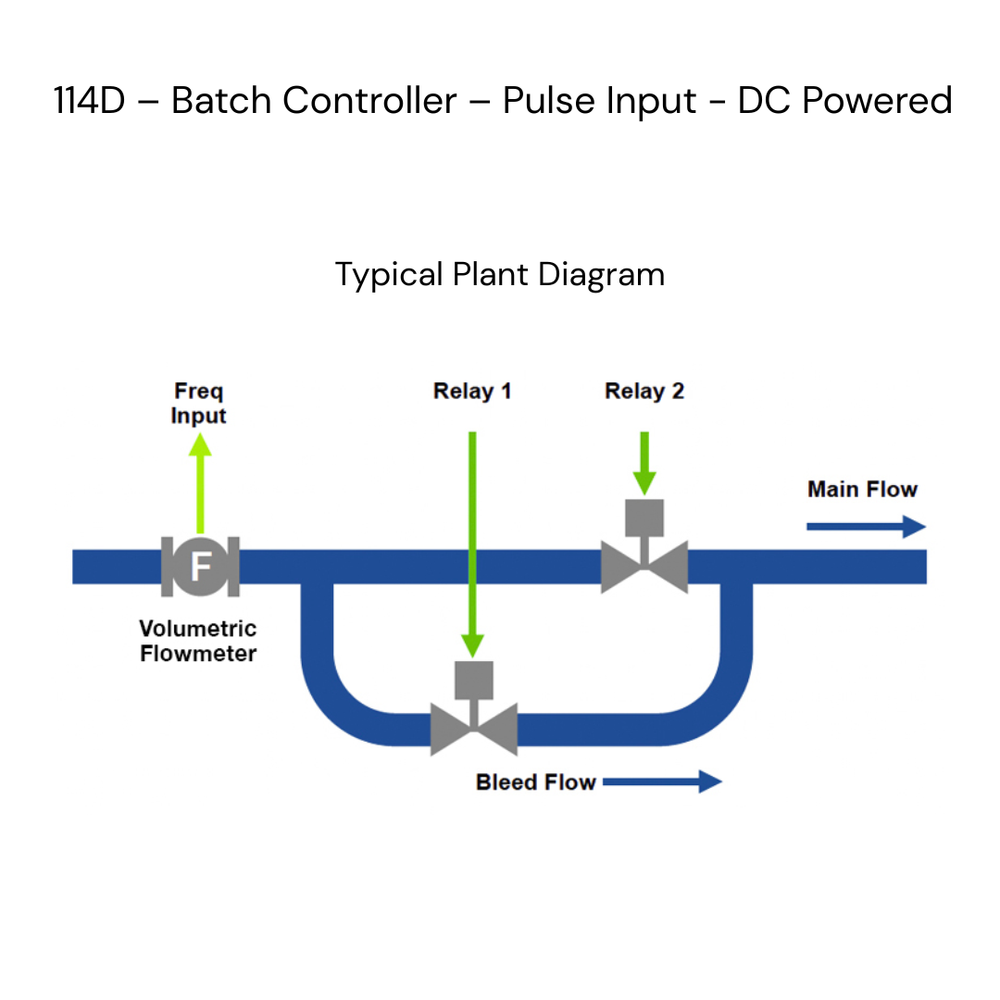

- (2) Digital Outputs for Batch Control
- Watertight Housing IP67 (NEMA4X)
- Polycarbonate Enclosure
- Pulse Input from Pulse Generating Flow Sensors
- Panel, Wall or Pipe Mounting Options
- Displays Rate-of-Flow, Resettable Total & Accumulated Total
The Anodised Aluminium Enclosure is environmentally protected to IP67, retaining the full complement of hazardous area approvals to ATEX, IECEx and CSA standards.
Available in Wall, Flowmeter and Pipe Mounting versions, the housing is available from stock and compliments the full range of 100 and 200 instruments:
• Flow Rate Totalisers
• Batch Controllers
• Level Monitors
• Process Indicators
Contrec Digital Batch Controller – Pulse Input – DC Powered - 114D
