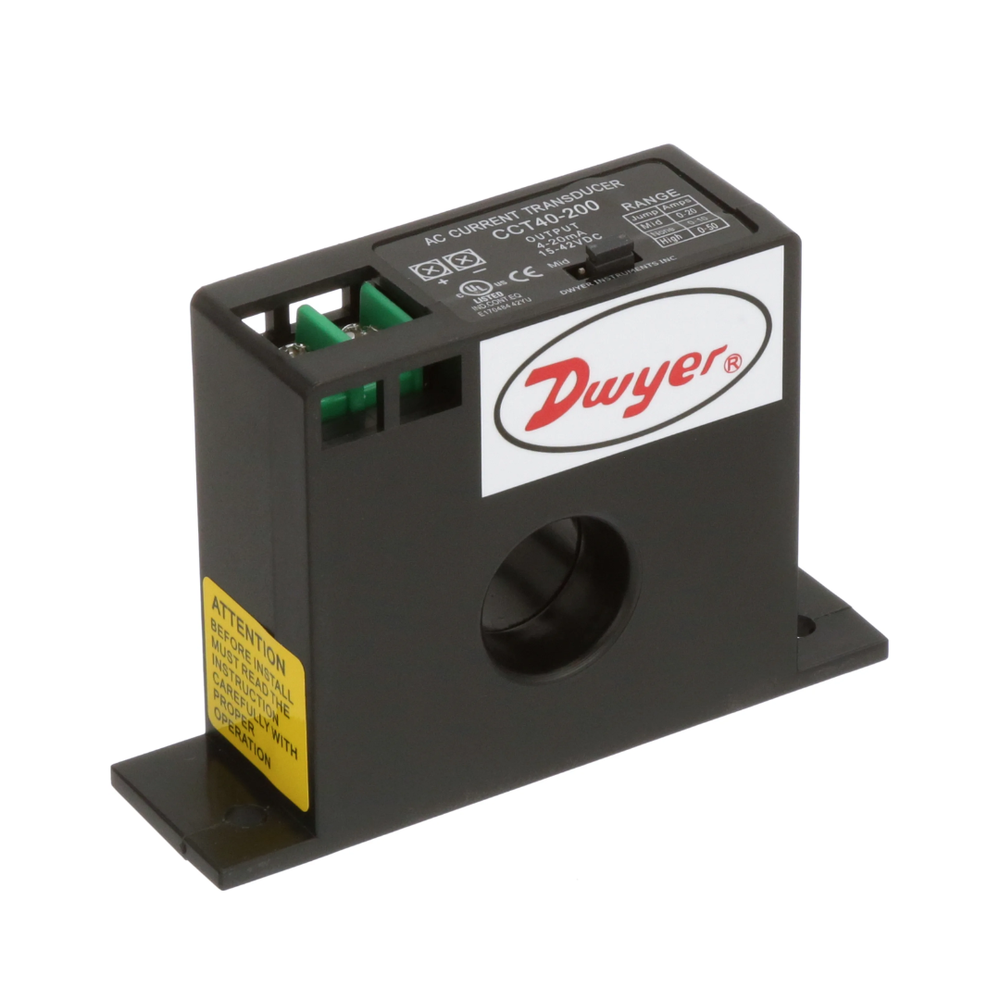

Dwyer CCT40/50 Series Current Transformer
(Prices exclude GST)
Dwyer CCT40/50 Series Current Transformer - CCT40-100; Range 10/20/50 A input; 4-20mA; 15 to 42 VDC; Loop Powered; Split Core is backordered and will ship as soon as it is back in stock.
Description
Description
The Dwyer CCT40/50 Series Current Transformer delivers cost-effective power measurement and equipment monitoring for fans, pumps, and industrial machinery. Split-core design allows installation on existing systems without cable disconnection, making retrofit applications straightforward. Three jumper-selectable ranges and multiple output options provide flexibility to match your specific monitoring requirements. Ideal for facilities requiring reliable current measurement without extensive downtime or system modifications.
APPLICATIONS
- BAS
- HVAC
SPECIFICATIONS
- Amperage Range: Field selectable; up to 200 A
- Output: 0-5 V, 0-10 V, or 4-20 mA
- Temperature Limits: -30 to 70°C
- Isolation Voltage: 2000 V
- Enclosure Rating: ABS plastic housing
Dwyer CCT40/50 Series Current Transformer
