Macnaught  |  SKU: IM019P-01

MacNaught Pulse Oil Meter 3/4" BSP

Shipping calculated at checkout.

MacNaught Pulse Oil Meter 3/4" BSP is backordered and will ship as soon as it is back in stock.

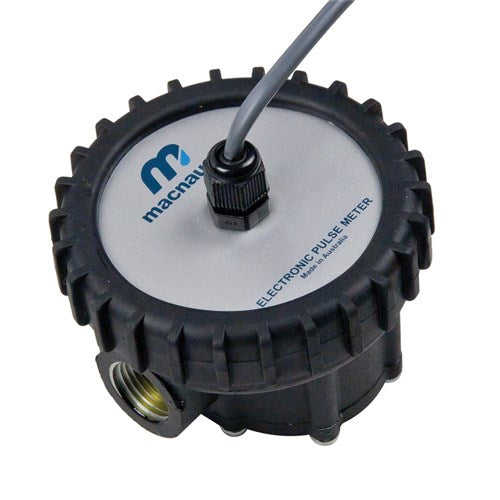

This MacNaught Pulse Oil Meter has an In-line oval gear meter with pulse output only, designed to measure lubricating oils. Flow rate up to 80L/min. Accuracy is around +/- 0.5% of reading with maximum pressure to 10,342 kPa (1,500 psi). Fly Lead is included to allow connection to other devices. Fitted with 3/4" BSP(F) ports.


Technical Specifications


  • IM019 meter with pulse output only
  • Suitable for oils up to SAE 140, automatic trans fluid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
  • Includes 1m fly lead either reed switch and/or half effect sensor
  • Flow rate from 3 to 80LPM
  • Accurate reading to +/- 0.5% with maximum pressure to 10,342kPa (1,500psi)

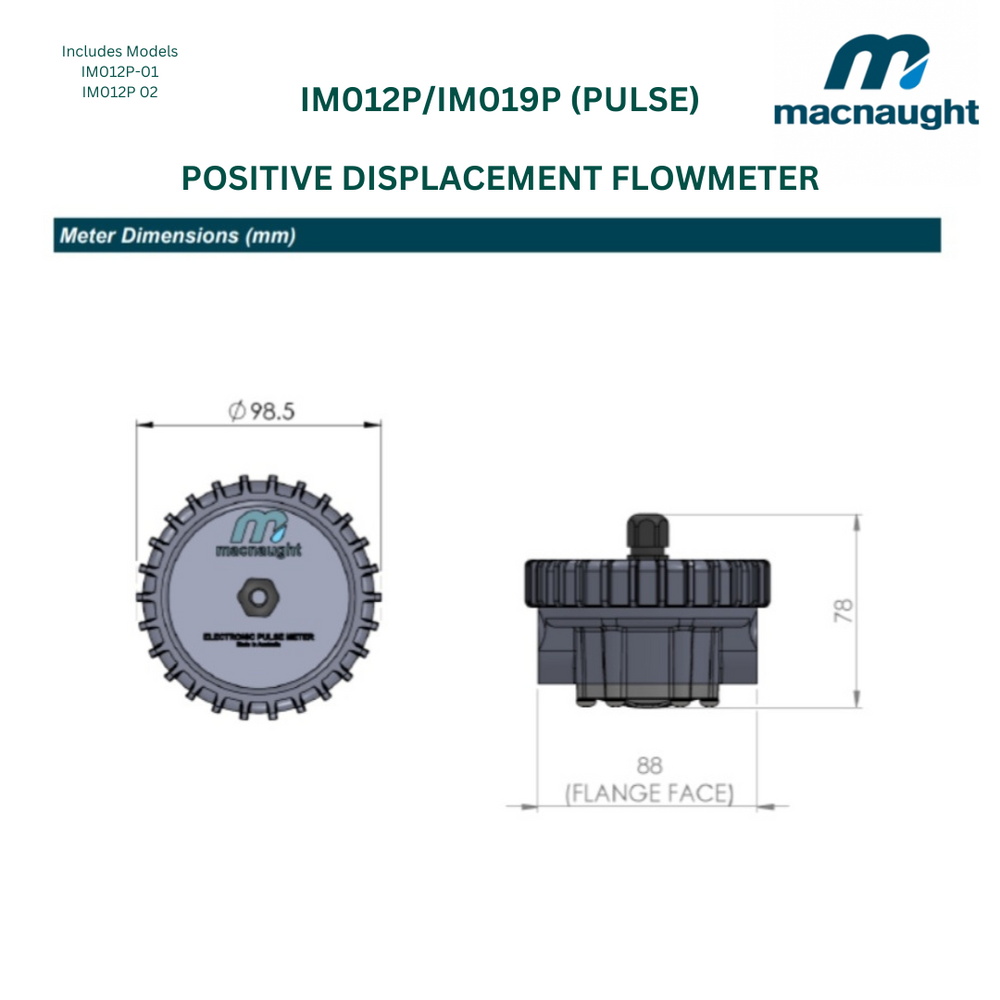

  • 3/4” BSP(F) inlet/outlet ports



This Macnaught Pulse Oil Meter has a 10 year warranty guarantee!

NB: All prices exclude GST
