WIKA | SKU: 232.50.100.-100...0

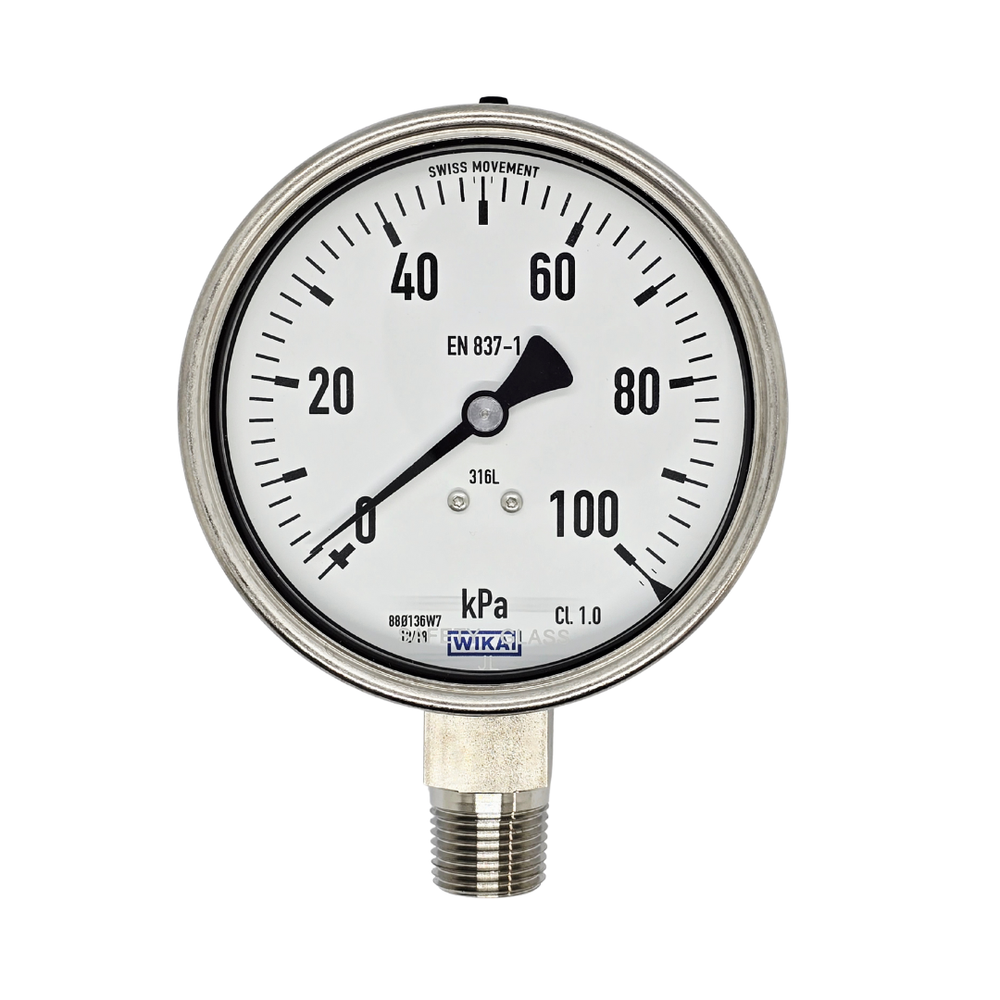

WIKA Bourden Tube Pressure Gauge - Stainless Steel - 100mm Dial - Bottom Entry

$369.60

Shipping calculated at checkout.

Description

This WIKA Bourdon Tube Pressure Gauge is perfect for the process and chemical engineering industry, with its high-quality stainless steel materials and robust design. Measuring liquid and gaseous media in aggressive environments designed to withstand ambient temperature between -40 ... + 60°C and a permissible medium temperature up to 200 °C.

This gauge meets safety standards EN 837-1 and ASME B40.100, featuring a blow-out device with blow-out plug for overpressure protection on the back of the case.

The model 233.50 with stainless steel liquid-filled case is suitable for high dynamic pressure loads and vibrations.

SPECIFICATIONS

MODEL	232.50 / 233.50
NOMINAL SIZE	100mm
SCALE RANGE	-100 ... 100,000Kpa
PROCESS CONNECTION	1/2" NPT
CONNECTOR LOCATION	LOWER MOUNT
MOUNTING FLANGE	POLISHED STAINLESS STEEL
WINDOW	POLYCARBONATE
ACCUARCY CLASS	CLASS 1.6
OVERPRESSURE SAFE	STANDARD
CASE MATERIAL	STAINLESS STEEL
PERMISSIBLE MEDIUM TEMP.	+ 200 °C
PERMISSIBLE AMBIENT TEMP.	- 40 ... + 60 °C

APPLICATIONS

■ For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
■ Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater technology
■ Machine building and general plant construction

Only gauges in stock are made available online. If you require a variation not shown in the drop down, please contact us to confirm lead times.
