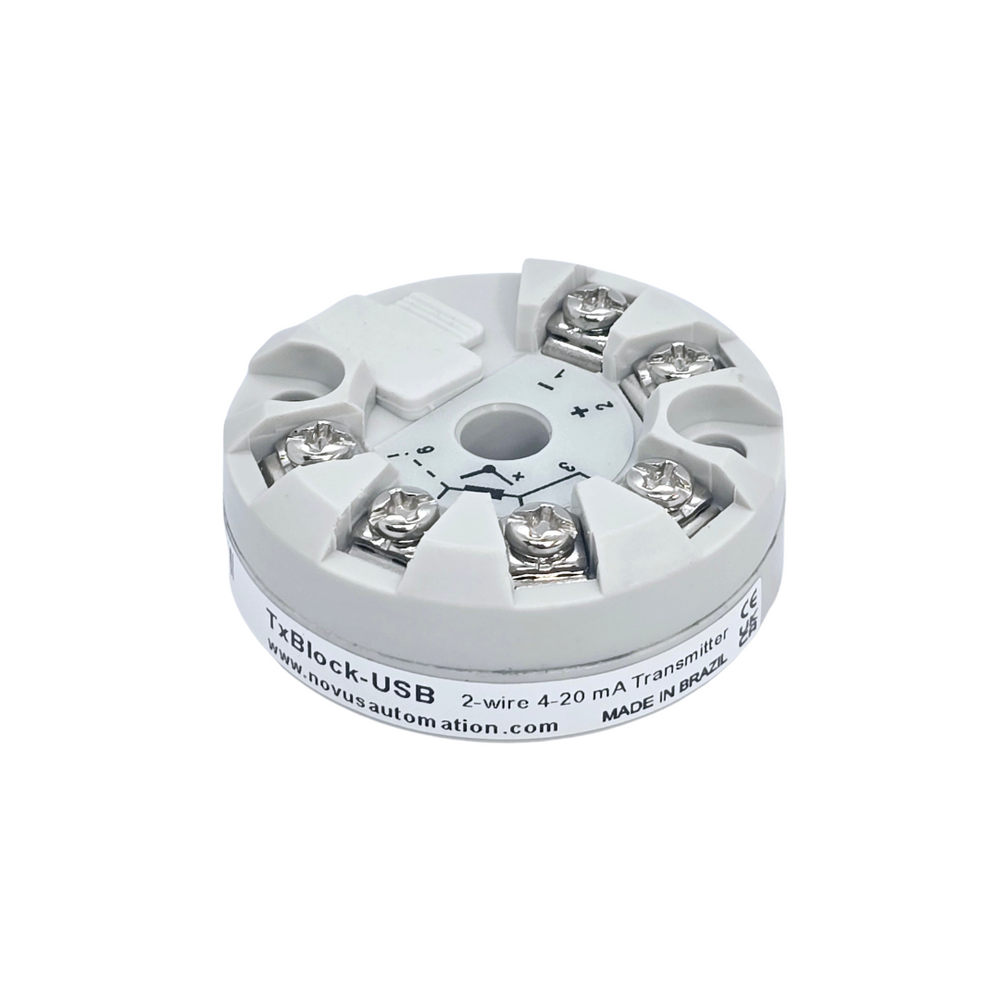

Novus TxBlock - USB Temperature Transmitter

The Novus TxBlock-USB  Temperature Transmitter offers great flexibility with options for sensor type, operating range, sensor offset and upscale and downscale protection.  Simply configure via the freely downloadable software, or order Pre-Configured from us.

The Output is an isolated signal, loop powered from 10...35 VDC.

Specifications

• Input Sensor - Configurable for most Thermocouple and RTD Probes
• Type-K, Type-J, Type-R, Type-S, Type-T, Type-N & PT100 RTD
• Transmitter Range: Software Configurable
• 2-Wire 4-20 mA Loop Powered Isolated Output,
• Typical Accuracy:                                                                                                     0.1% of maximum range for Thermocouple and MV                                                     0.1% of maximum range for PT100 + PT1000; 0.3% for NTC

• Isolated version; Hockey-Puck Type
• ABS enclosure: 44mm diameter: 24mm max height
• Ideally suited for mounting inside of Large Temperature Probe Termination Heads
• DIN Rail Clips are available for mounting on DIN Rail

Programme requirements: Please contact us to ensure your specifications are noted and ordered accurately.
