Macnaught | SKU:
IM012P-01

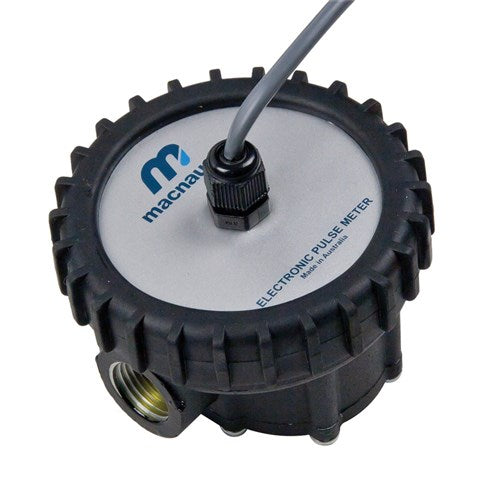

MacNaught Pulse Oil Meter 1/2"BSP
$495.00
Unit price
/
Unavailable
Shipping calculated at checkout.
MacNaught Pulse Oil Meter 1/2"BSP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Description
This MacNaught Pulse Oil Meter has an In-line oval gear meter with pulse output only, designed to measure lubricating oils. Flow rate up to 30L/min. Accuracy is around +/- 0.5% of reading with maximum pressure to 6,900 kPa (1,000 psi). Fly Lead is included to allow connection to other devices. Fitted with 1/2" BSP(F) ports.
Technical Specifications
- IM012 meter with pulse output only
- Suitable for oils up to SAE 140, automatic trans fluid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
- Includes 1m fly lead either reed switch and/or half effect sensor
- Flow range up to 1 – 30LPM
- Accurate reading to +/- 0.5% with maximum pressure to 6,900kPa (1,000psi)
- 1/2” BSP(F) inlet/outlet ports
Warranty
- This Macnaught Pulse Oil Meter has a 10 year warranty guarantee!
NB: All prices exclude GST
