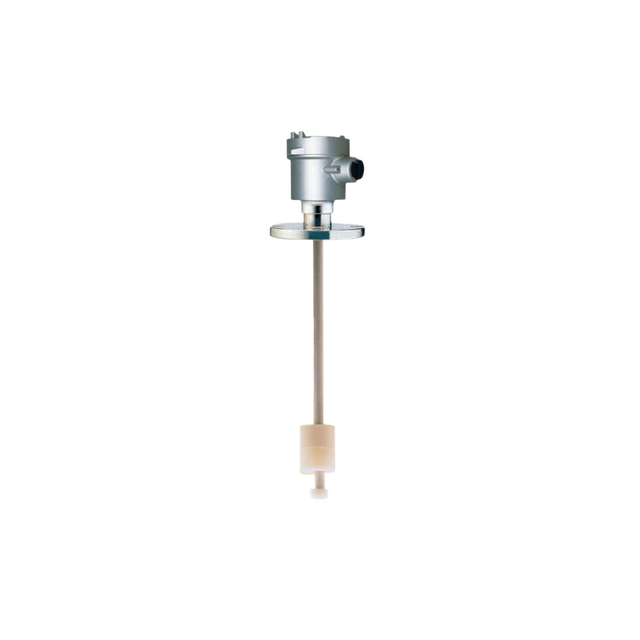

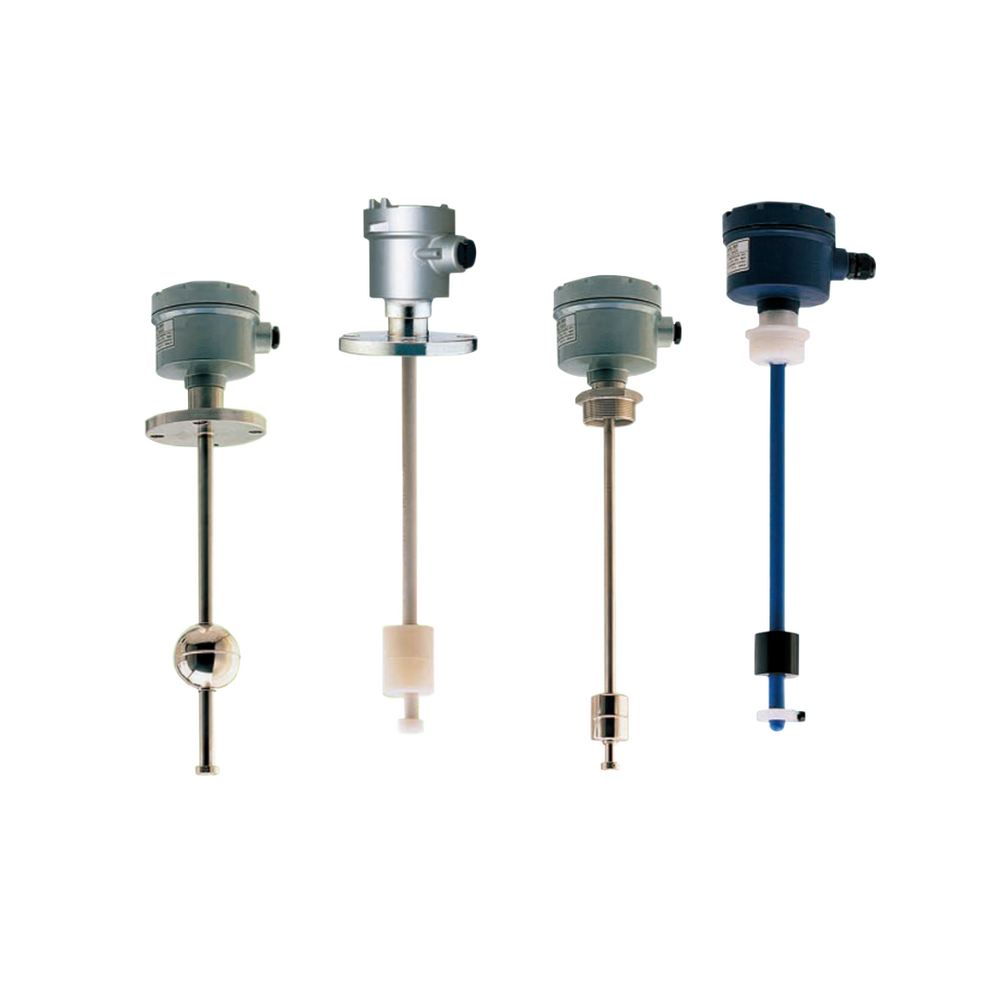

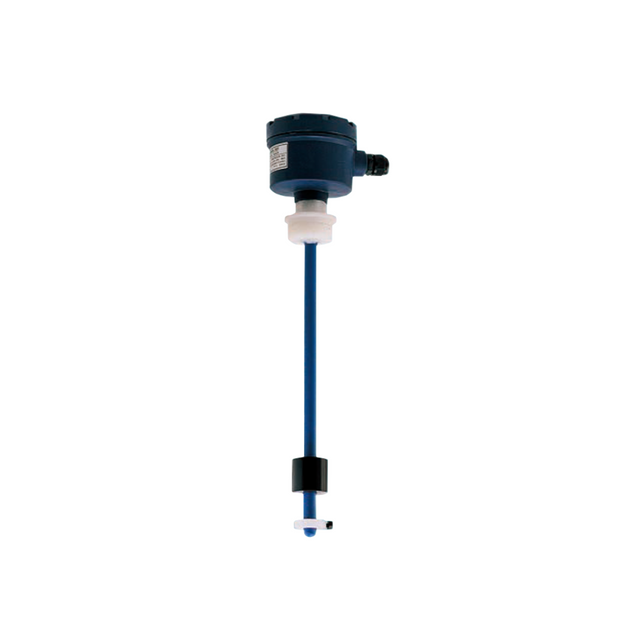

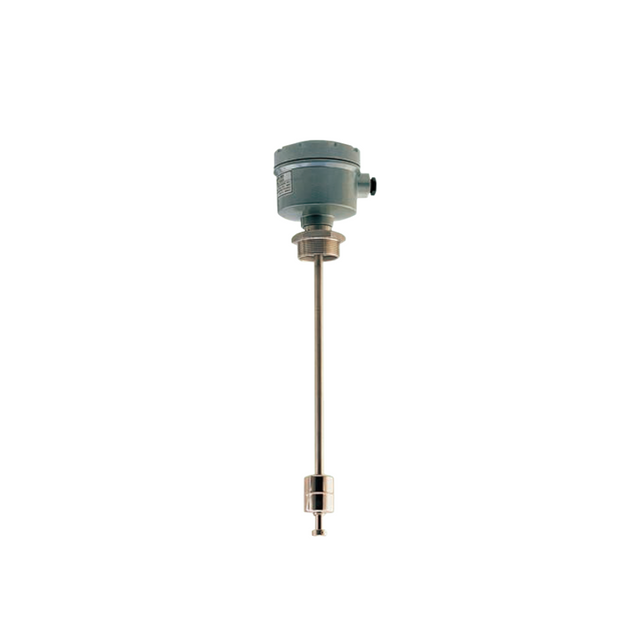

FineTek FGX Magnetic Float Type Level Transmitters

The FineTek FGX Magnetic Float Type Level Transmitters provide precise fluid level measurement by utilizing a float and sensing guide rod system. The float’s size and weight are carefully selected to match the fluid density, ensuring accurate tracking as it moves with the liquid level. This transmitter converts the float position into a resistance output directly proportional to the fluid level, enabling reliable monitoring in various industrial applications. Its design offers durability and high responsiveness for expert-level liquid level control.

• Magnetic Float, Reed Sensor design
• 4-20 mA 2-Wire Signal Output
• Custom made to length from 100 mm to 3000 mm
• Flange or Threaded top of tank mounting styles
• Options: All Stainless Steel or Plastic construction
