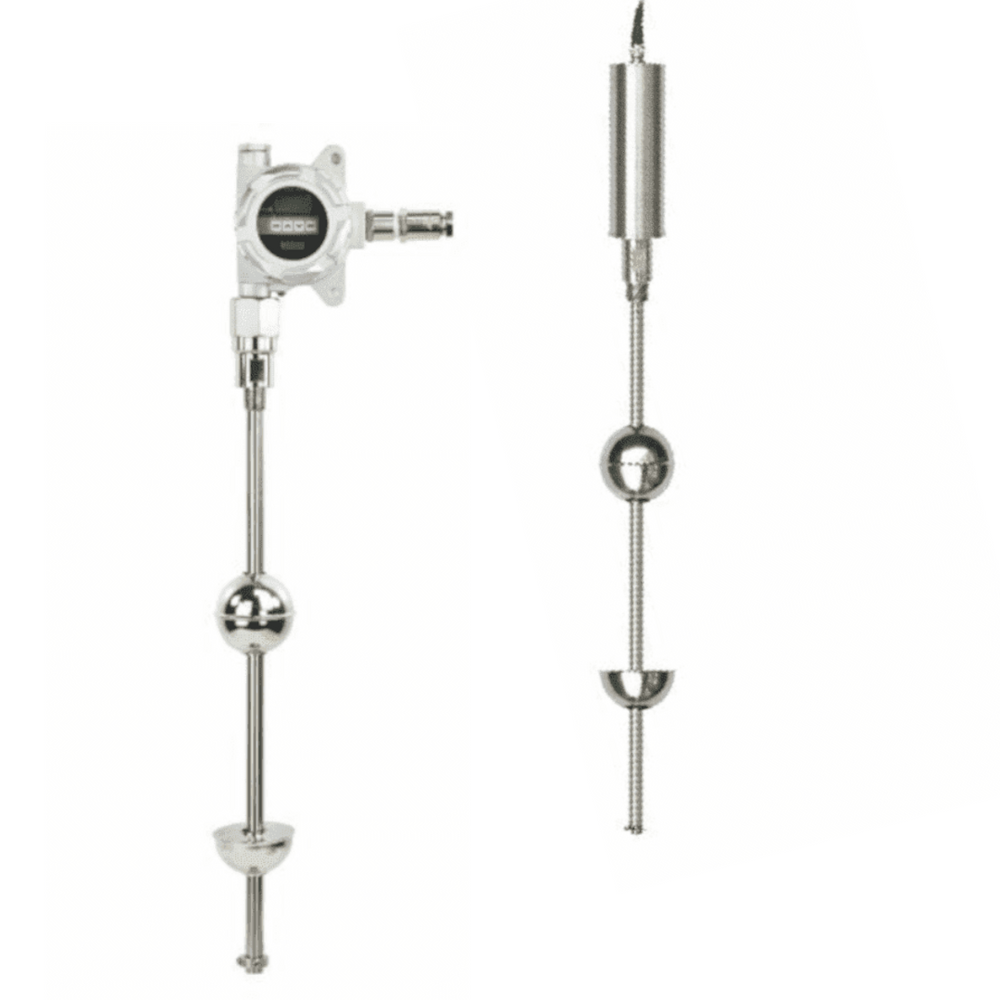

Finetek EGX Magnetostrictive Level Transmitters

The Finetek EG Magnetostrictive Level Transmitters use advanced magnetostriction and buoyancy principles to deliver precise liquid level measurements. Designed to handle a variety of fluids, including interfaces and insoluble multiple liquids, the transmitter employs a float with a magnetic element that moves in response to fluid level changes. A sensor wire within the stem detects the float’s position via current pulses, enabling accurate and reliable monitoring. This technology ensures consistent performance across diverse applications with tailored float sizing for specific fluid densities.

FEATURES

• Magnetostrictive Sensor design
• 4-20 mA Output RS485 Signal for interface detection
• Two-float version for insoluble liquids available
• Custom made to length from 100 mm to 3500 mm
• Flange or Threaded top of tank mounting styles
• Options: All Stainless Steel construction, Ex-Rated, Dual Floats

APPLICATIONS

• Liquefied natural gas.
• Crude oil, petroleum's and diesels.
• Chemical processing.
• Pharmaceutics and medication.
• Food and beverages, breweries.
• Dams, water barriers, wastewater treatment.
• Power plants, marine and shipbuilding.
