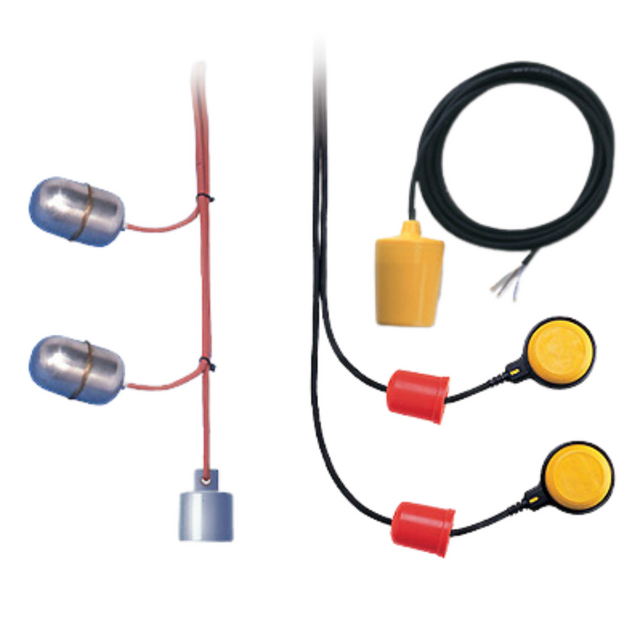

Finetek FAB Series Cable Float Type Level Switch – Fully Submersible

The Finetek FAB Series Cable Float Type Level Switch offers a robust solution for fluid level monitoring, designed with chemical-resistant materials to ensure durability in harsh environments. Fully submersible and straightforward to install, it features options with microswitch, reed switch, or mercury switch outputs, providing reliable, low-maintenance operation. Its cost-effective design makes it ideal for varied industrial applications requiring precise and dependable level detection.

The Finetek FAB Series Cable Float Type Level Switch is engineered for precise single-point (FA) or multipoint (FB) liquid level detection across a broad range of installation lengths. Utilizing float buoyancy, the internal steel ball shifts from its default activation position when fluid is present, triggering a contact change. It supports “open,” “closed,” or “open/closed” contact configurations depending on the float angle relative to its actuation angle, which varies by float type. This design ensures accurate and reliable level monitoring suited to diverse industrial applications.

FEATURES

• Polypropylene & Stainless Steel Float Housings
• PVC, Neoprene & Silicone Rubber Cables
• Single or multiple float configurations
• Various Stocked Cable Lengths
• SPDT Microswitch; 10-Amp Rated Contacts
• Options: High Temp. 170-Deg.C; Counter-Weights

USE

• General pump control
• Pump control in wastewater
• Suitable for low specific gravity materials
• Can handle high operating temperatures
• Clean fluids with small process connections
