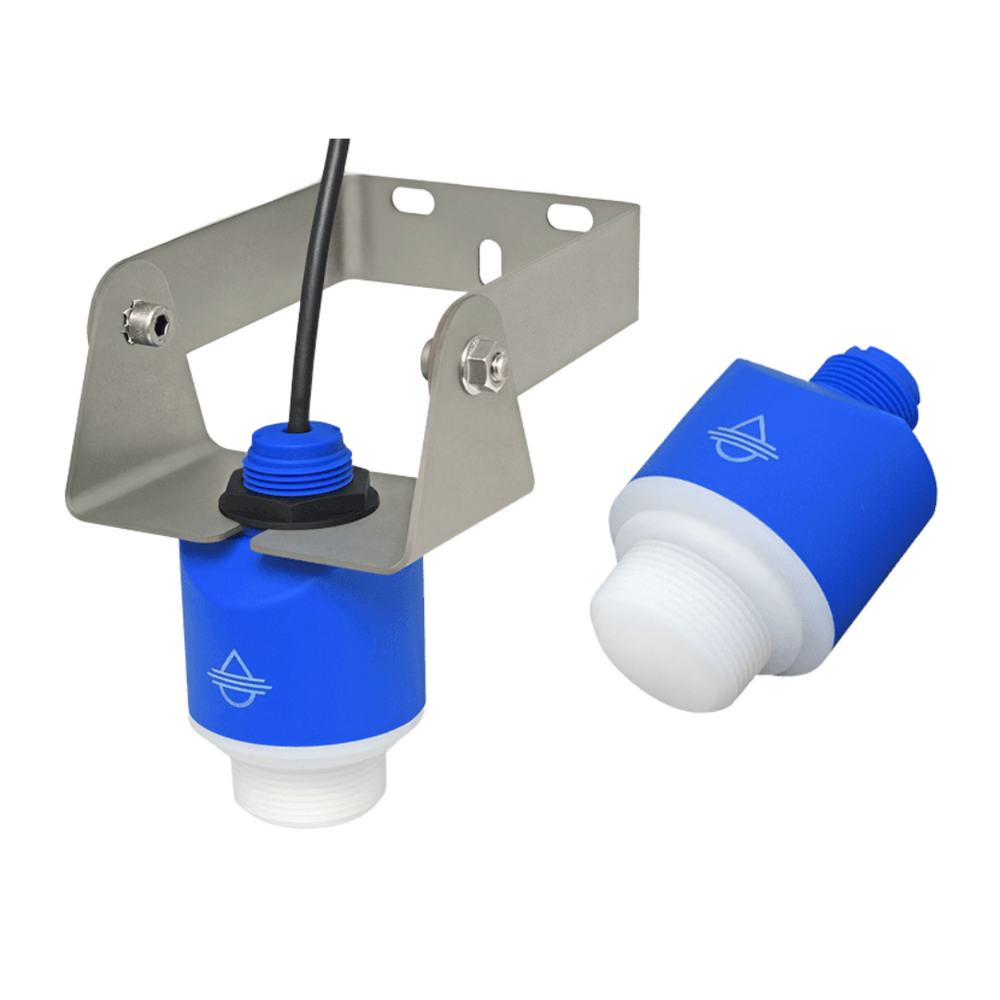

Flowline EchoBeam® LR80 Radar Liquid and Solids Level Sensor Transmitter

The Flowline EchoBeam® LR80 utilizes advanced 80-GHz radar technology to provide precise, non-contact measurement of liquid and solid levels. Its high-frequency signal delivers reliable performance unaffected by most process or environmental conditions. Designed for ease of use, the sensor is configurable through Flowline’s intuitive LevelTap™ App, enabling seamless setup and integration. This combination of accuracy and user-friendly operation makes the LR80 an expert choice for level measurement in demanding industrial applications.

APPLICATION

The Flowline EchoBeam® LR80 is a versatile 80-GHz radar level sensor transmitter offering continuous measurement up to 10 meters for liquids and 5 meters for solids with a 4-20 mA output.  The Flowline EchoBeam® LR80 is wirelessly configured via Bluetooth using the LevelTap™ App, allowing users to monitor levels, verify device status, and adjust settings remotely for enhanced safety and convenience in industrial environments. The Flowline EchoBeam® LR80 measures liquid and solid media with a dielectric constant ≥1.6 including water, chemicals, petroleum products, and various solids like pellets, grains, and powders or aggregate solids. Select this level sensor transmitter for tank, sump, lift station, weir, canal, reservoir, bin, conveyor or transfer station applications.

FEATURES

• 80-GHz technology provides reliable, maintenance-free operation
• Measures level height, air gap, tank volume or open channel flow
• Rugged PVDF antenna and enclosure for corrosive liquid or solids
• IP68 rated sensor for harsh outdoor or below grade installations
• Shielded 10m PVC jacketed cable for corrosive level environments
• Zero dead band maximizes the potential fill capacity of small tanks

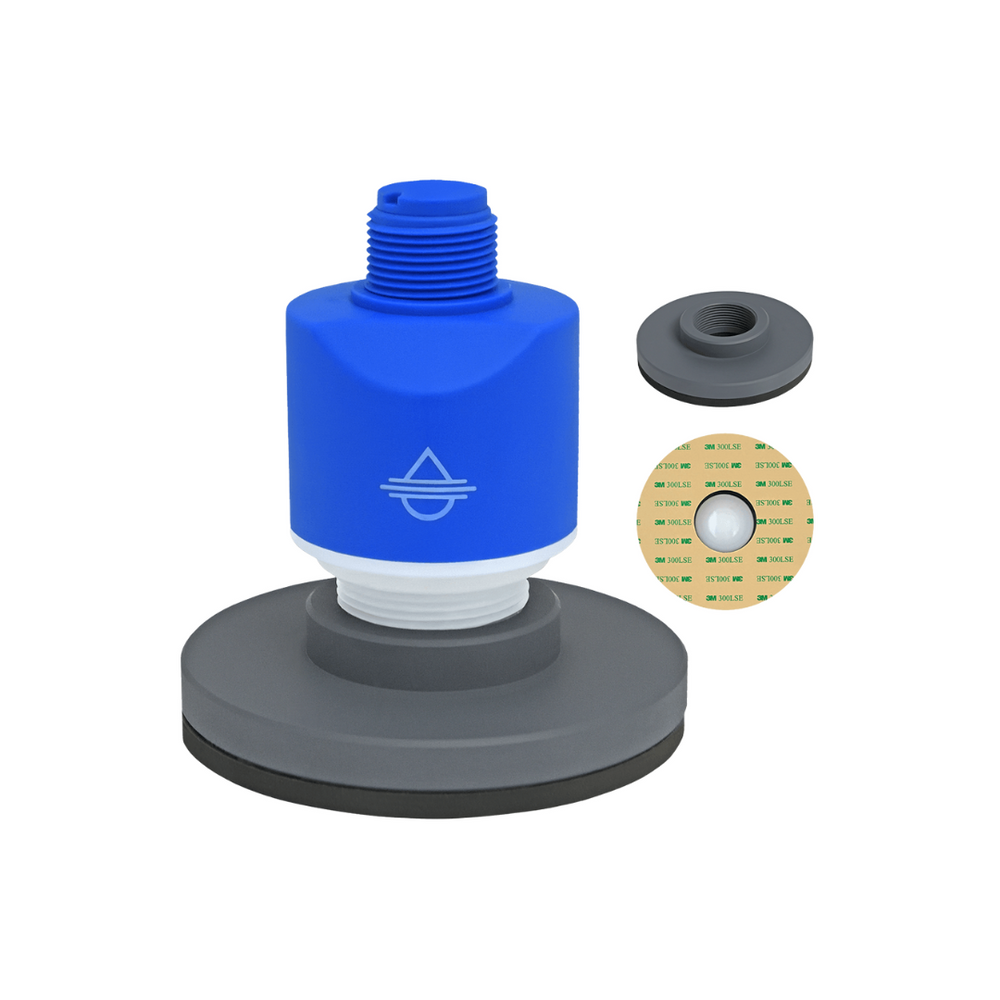

• Optionally measures through top wall of plastic or fiberglass tanks
• Bluetooth wireless configuration via the LevelTap^TM mobile App
• Lowest cost radar sensor for your basic level requirements
