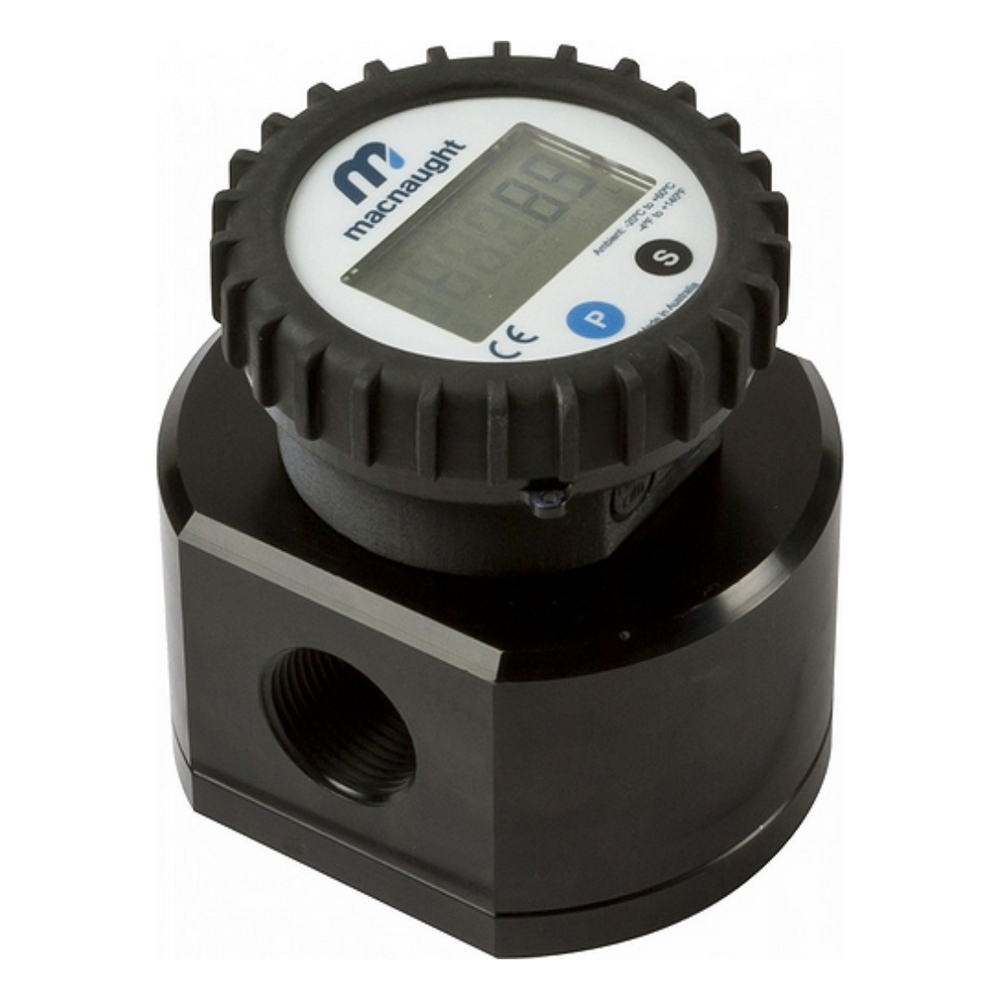

MacNaught MX Series Oval Gear Flowmeter – Aluminium Body for Fuels and Oils – with Battery Powered Digital Indicator

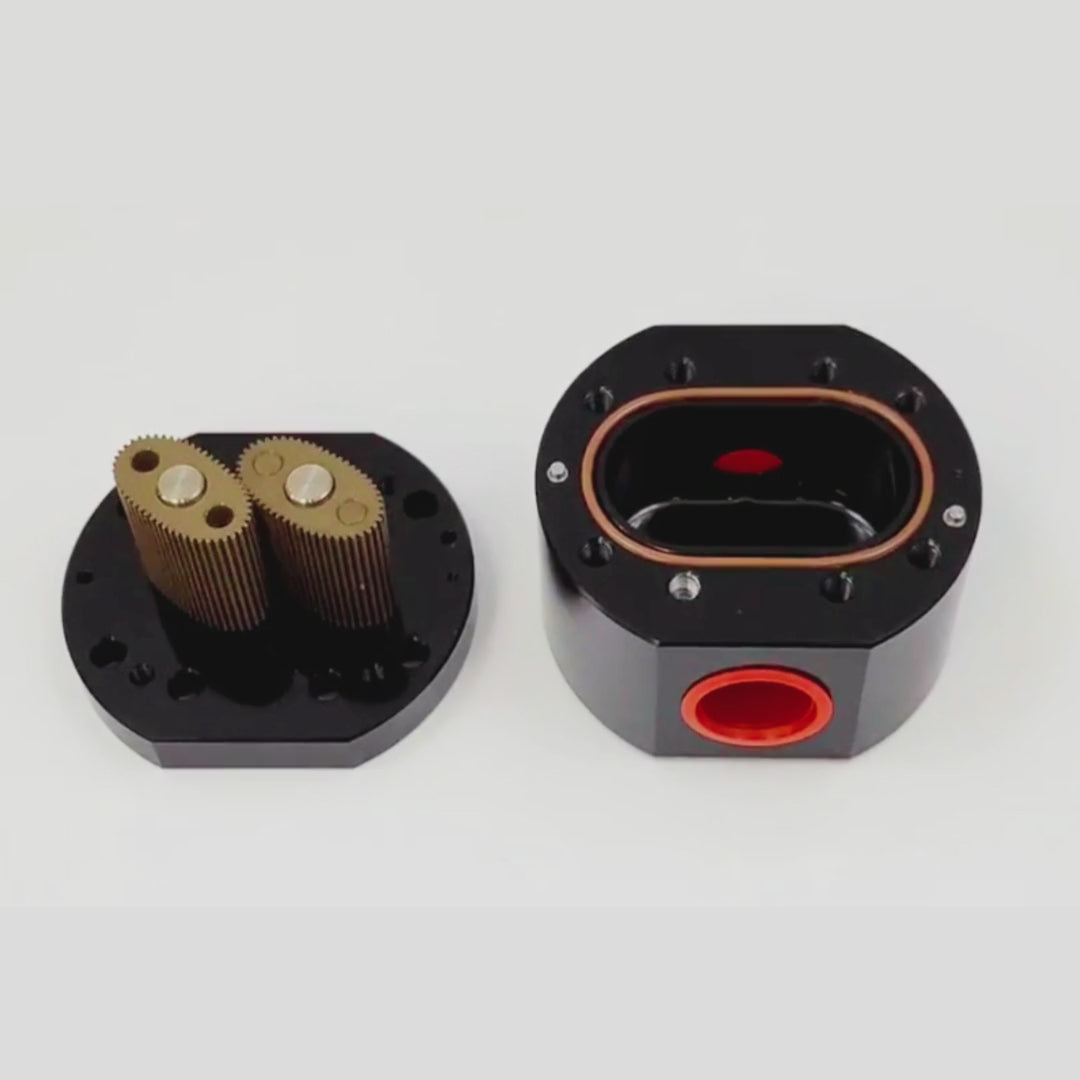

Our MacNaught MX-Series Oval Gear Positive Displacement Flowmeters are the ideal Flowmeter for measuring viscous fluids such as Oils and Fuels. These Flowmeters provide good accuracy and a visual display of both the Rate-of-Flow, as well as a Resettable Totaliser.

MacNaught MX Flowmeters are proudly Australian Made and can be supplied in various sizes to suit your expected flow rate measurement range.

These PR-Displays are Battery Powered and have no outputs.  See our DC Powered Digital Display Models if a Transmitter Output is required.  We also have optional Heavy Duty Industrial Display Housings, as well as Hazardous Area (Ex-Rated) versions for these as well.

• Battery Powered No Outputs
• Aluminium (6061) construction
• FKM (Viton) seals; PPS (Ryton) Rotors;
• Select size based on expected flow rate
• BSP Female Threaded Ports (NPT or Flanged options on request)
• Accuracy of ±±0.5% of reading
• Exceptional repeatability of ±±0.03%
• Temperature up to 80°C / 176°F
• 1 Point factory calibration as standard, with additional points upon request
