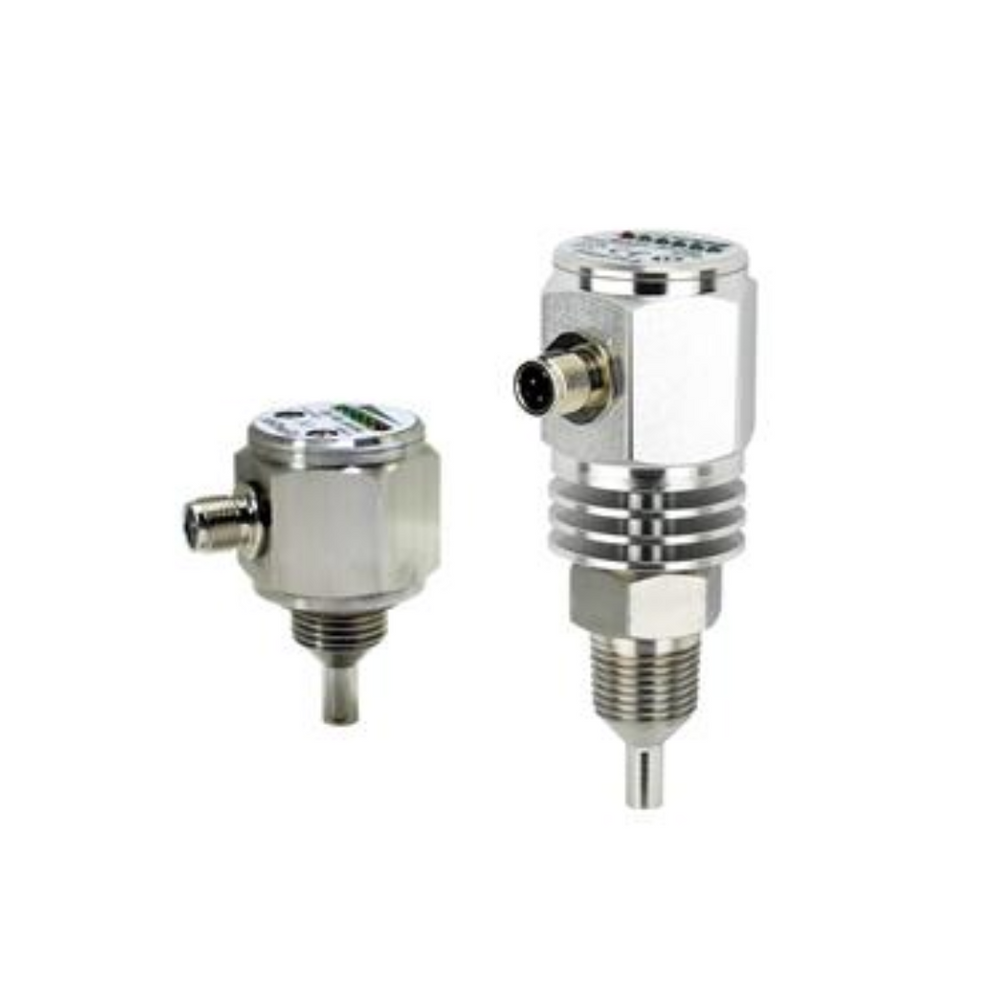

Finetek SPX Thermal Dispersion Flow Switch

The Finetek SP Thermal Dispersion Flow Switch detects liquid flow by measuring temperature differences between two sensors—one reference sensor and one heated sensor. As fluid flows past the heated sensor, it cools, reducing the temperature difference and triggering the switch output. This precise thermal dispersion method ensures reliable flow monitoring and control in various industrial applications.

The Finetek SP Thermal Dispersion Flow Switch is available in several versions with choices of lengths, materials of construction and output types to meet a wide range of application requirements.

FEATURES

• No moving parts; Detection of flow in pipes; Fully Adjustable;
• to suit pipe sizes from 15mm up to 600mm N.B
• Maximum operating pressure up to 1,450psi (100bar)
• Compact Stainless Steel IP67 body; LED status indication;
• suitable for liquids; NPN, PNP or 5-Amp Relay Output versions;
• Options: PVDF / PTFE Housing; Custom Stem Lengths to 200 mm;

USE

• Detect positive flow to control downstream process
• Ensure machinery safe operation with detection of coolant flow
