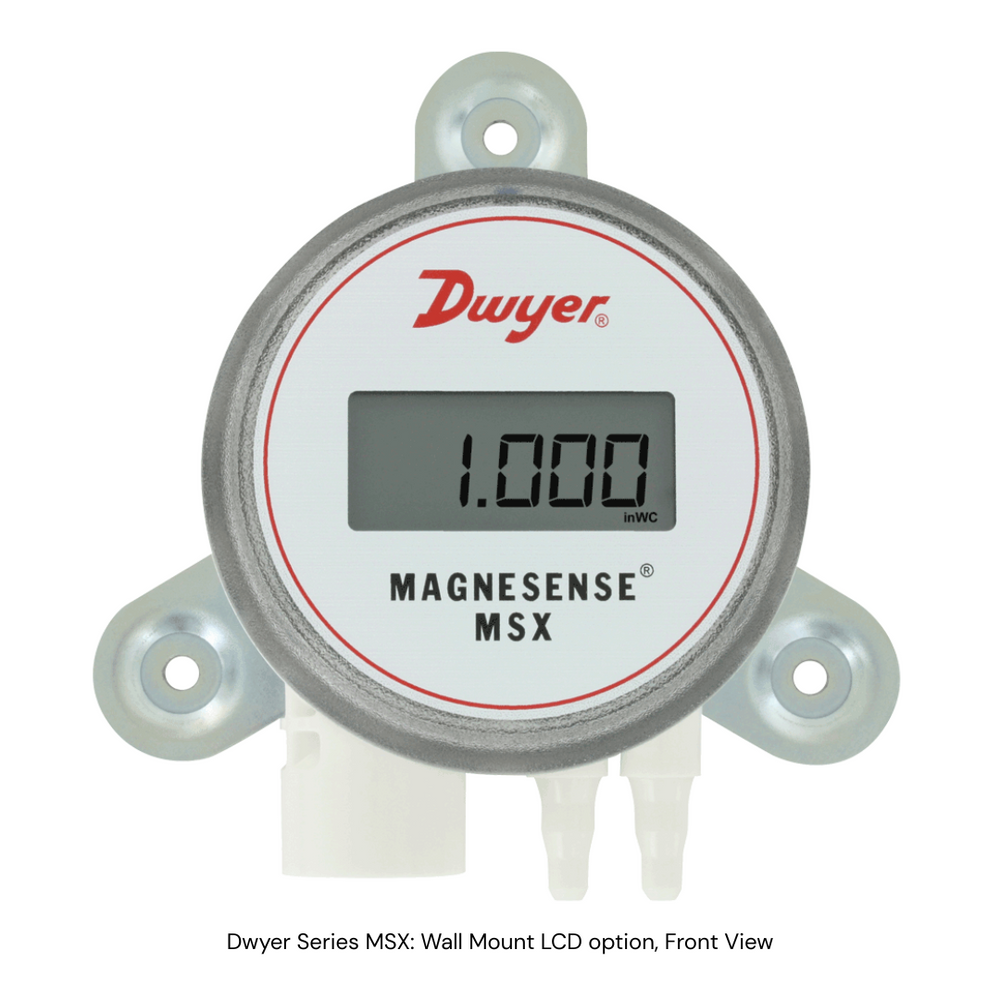

Dwyer MSX Series Magnesense® Differential Pressure Transmitter
Dwyer MSX Series Magnesense® Differential Pressure Transmitter - WITH DIGITAL DISPLAY / MSX-Wall Mount / 0 = 0...125 PASCALS is backordered and will ship as soon as it is back in stock.
Description
Description
The Dwyer Series MSX Magnesense® Differential Pressure Transmitter offers enhanced stability and versatility for building control applications. It streamlines configuration with 32 selectable pressure ranges in Pa, mm w.c., and in w.c., available in unidirectional or bidirectional modes. The transmitter supports both linear pressure output and linear velocity output with square root extraction, enabling precise flow calculations. Dual voltage and milliamp outputs provide flexible integration options, making the MSX an efficient and reliable choice for accurate differential pressure measurement.
APPLICATIONS
- Filter monitoring in air handler units
- Building pressure in pharmaceutical/semiconductor clean rooms
- Duct static pressure in commercial buildings
- Air velocity/flow in VAV systems
SPECIFICATIONS
|
Accuracy: ±1% FSO. Service: Air and non-combustible, compatible gases. Stability: ±1% FSO/year. Temperature Limits: -4 to 158°F (-20 to 70°C). Pressure Limits: Ranges 0 and 1: 3.6 psi max operation, 6 psi burst; Ranges 2, 3 and 4: 6 psi max operation, 6 psi burst. Power Requirements: 10-36 VDC (2-wire), 17-36 VDC or isolated 21.6-33 VAC (3-wire). Output Signals: 4-20 mA (2-wire); 0-10 V or 0-5 V selectable (3-wire). Process Connections: 1/8˝, 3/16˝, 1/4˝, 5 mm, and 6 mm ID flexible tubing. Electrical Entry: 1/2˝ NPS thread. Display (optional): 4 digit LCD. |
Dwyer MSX Series Magnesense® Differential Pressure Transmitter
