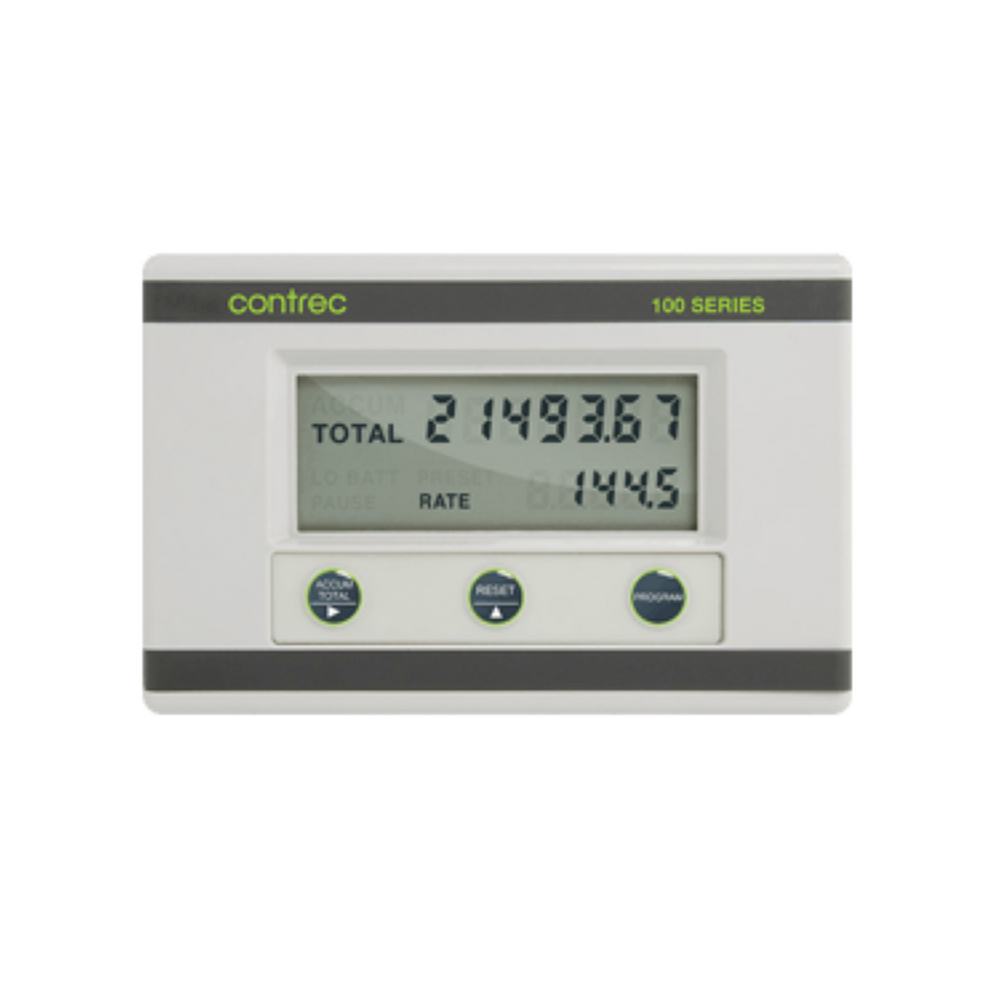

Contrec Digital Rate & Totaliser Display – Pulse Input – Loop Powered - 104D

The 104D Loop Powered Rate Totaliser with Analogue Output is designed to operate with virtually any pulse/frequency generating flowmeters including Turbine, Positive Displacement, Electromagnetic and Coriolis.

Applications include irrigation systems and pipelines, and as a replacement for mechanical registers.

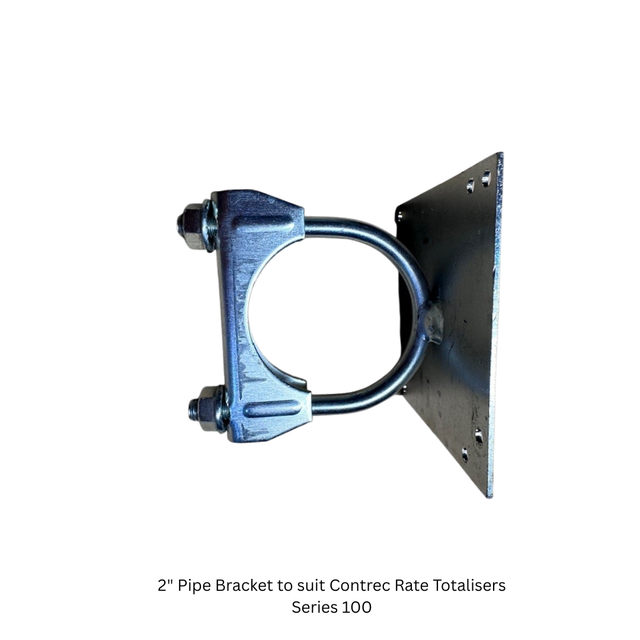

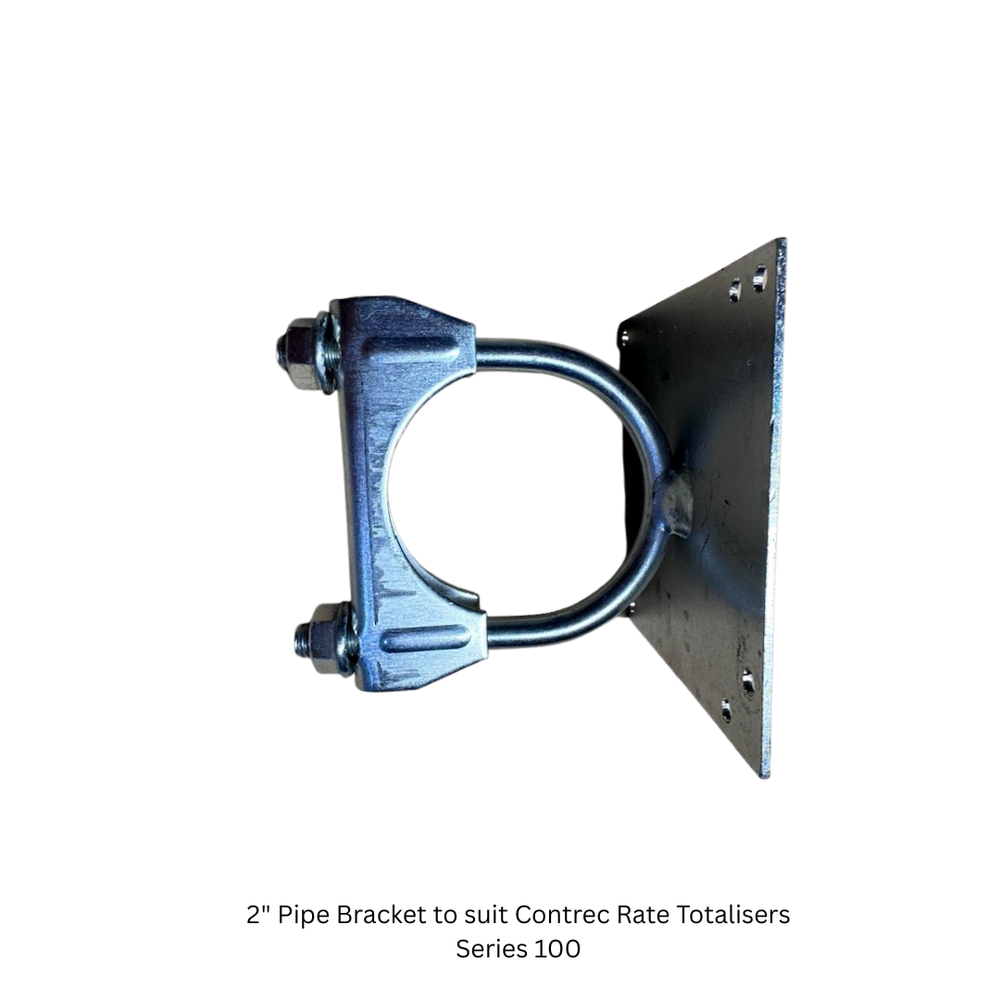

The 104D Loop Powered Rate Totaliser is housed in a rugged yet attractive IP67 (Nema 4X)  rated polycarbonate enclosure which is completely watertight. This enables the instrument to be mounted directly on the flowmeter, panel mounted or wall mounted using a special universal bracket. A 2″ pipe mounting bracket is also available.

• Powered by 4…20 mA Output Loop
• High and Low Alarm Outputs
• Watertight Housing IP67 (NEMA4X)
• Polycarbonate Enclosure
• Pulse Input from Pulse Generating Flow Sensors
• Panel, Wall or Pipe Mounting Options
• Displays Rate-of-Flow, Resettable Total & Accumulated Total

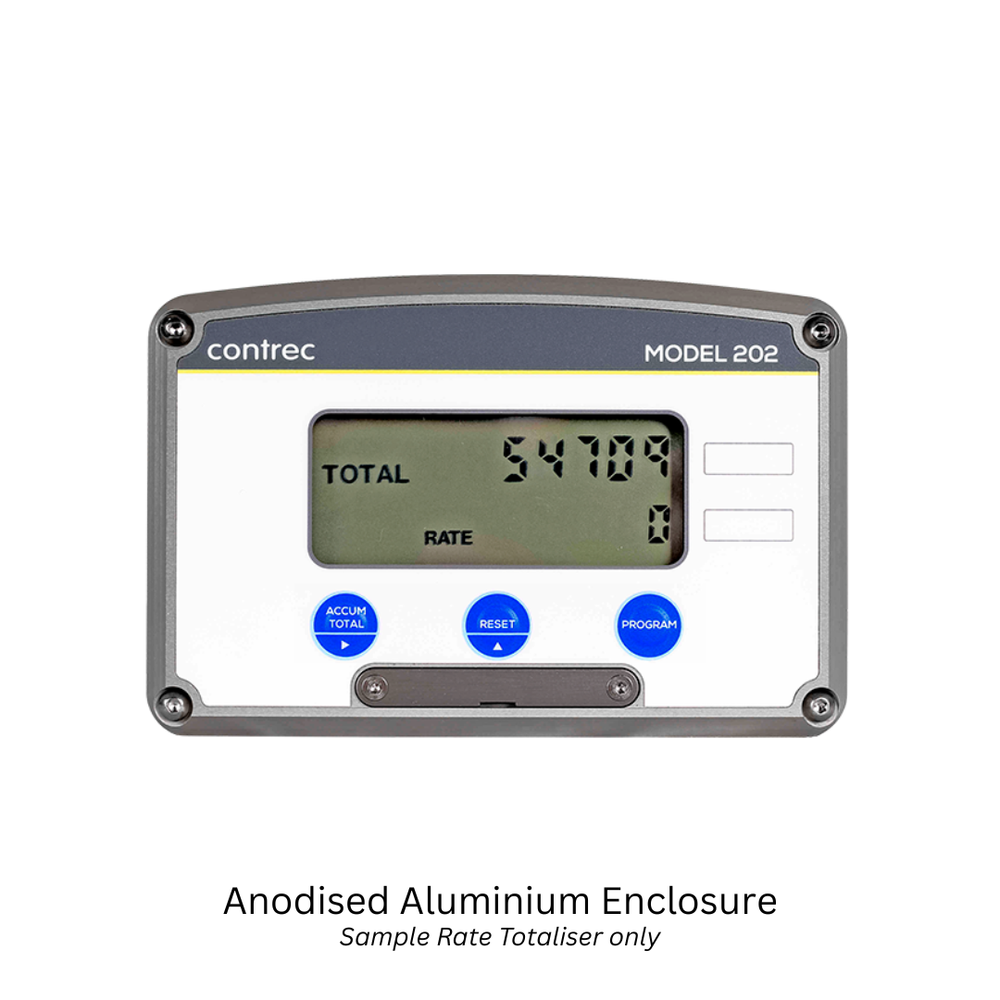

The Anodised Aluminium Enclosure is environmentally protected to IP67, retaining the full complement of hazardous area approvals to ATEX, IECEx and CSA standards.

Available in Wall, Flowmeter and Pipe Mounting versions, the housing is available from stock and compliments the full range of 100 and 200 instruments:
• Flow Rate Totalisers
• Batch Controllers
• Level Monitors
• Process Indicators
