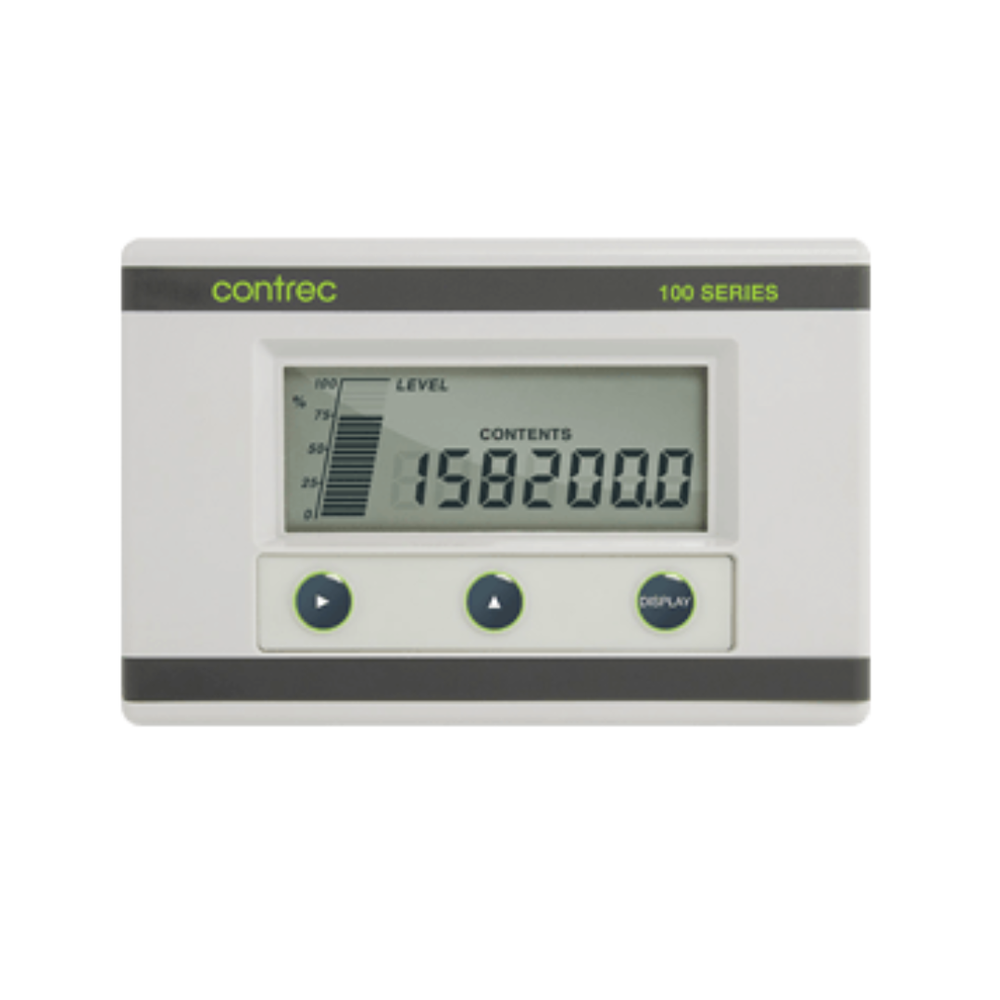

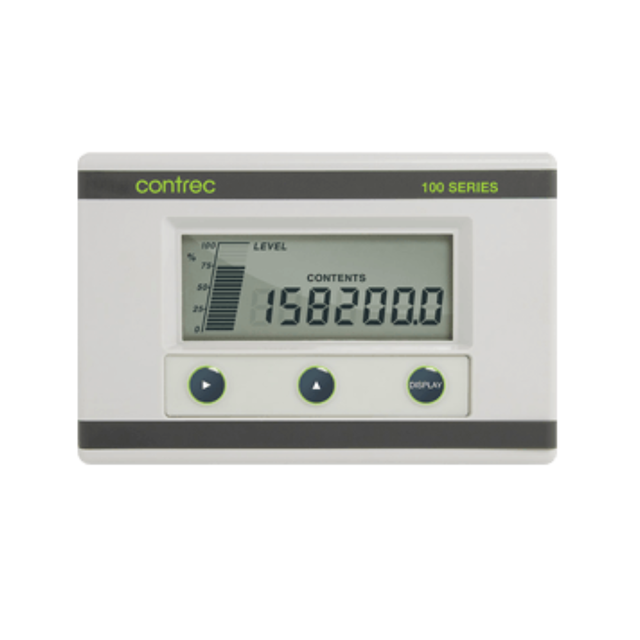

Contrec Digital Level Monitor – Analogue Input - Loop Powered - 120A

The 120A Loop Powered Digital Level Monitor is designed to operate with virtually any 4-20 mA Output Signal from Level Transmitters including Ultrasonic, Radar, Hydrostatic or capacitance probes, displaying both level and tank contents on a large LCD display.

Solid state relay outputs deliver up to four level alarms, while a 25-point non-linearity correction table lets you programme the instrument to match virtually any tank geometry or sensor characteristic.

The Level Monitor is powered entirely from the 4-20mA current loop and, therefore, requires no external power or batteries.

The 120A Loop Powered Digital Level Monitor is housed in a rugged yet attractive IP67 (Nema 4X)  rated polycarbonate enclosure which is completely watertight. This enables the instrument to be mounted directly on the flowmeter, panel mounted or wall mounted using a special universal bracket. A 2″ pipe mounting bracket is also available.

• Powered 4…20 mA Input Loop
• High and Low Alarm Outputs
• Watertight Housing IP67 (NEMA4X)
• Polycarbonate Enclosure
• Panel, Wall or Pipe Mounting Options
• Displays Tank Contents with Bargraph

The Anodised Aluminium Enclosure is environmentally protected to IP67, retaining the full complement of hazardous area approvals to ATEX, IECEx and CSA standards.

Available in Wall, Flowmeter and Pipe Mounting versions, the housing is available from stock and compliments the full range of 100 and 200 instruments:
• Flow Rate Totalisers
• Batch Controllers
• Level Monitors
• Process Indicators
