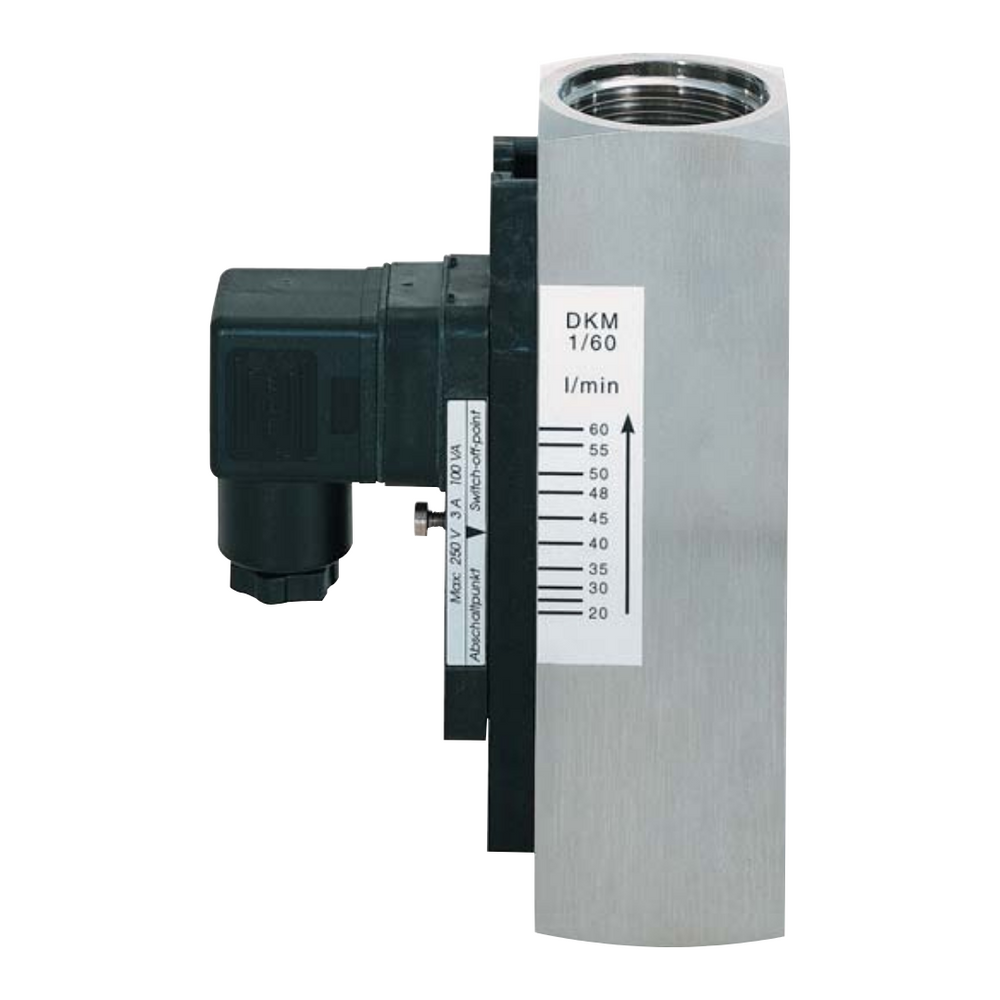

Meister Flow Switch Monitor for Oils – DKM-1 – High Ranges


The Meister DKM-1 Flow Switch Monitor is designed to be mounted inline in your pipework, to provide a switch point at your specific flow rate. These Flow Switches are ideal for small pipes where Vane Type Flow Switches aren’t practical to fit. The Flow Switch Monitors operate on a Float measuring principal and can be installed in any orientation.

The DKM-1 Series are an In-Line Flow Switch which is uniquely designed to be viscosity compensated for oil and viscous fluids up to 600 cSt.  We have other models for air/gas and water.


  • Applications include but not limited to, hydraulic systems, oil filtration
  • Solid Body Construction, compact In-Line; Adjustable Switch Point
  • 1” Port Connections; Brass or Stainless Body material
  • Brass rated to 250 BAR, Stainless rated to 300 BAR

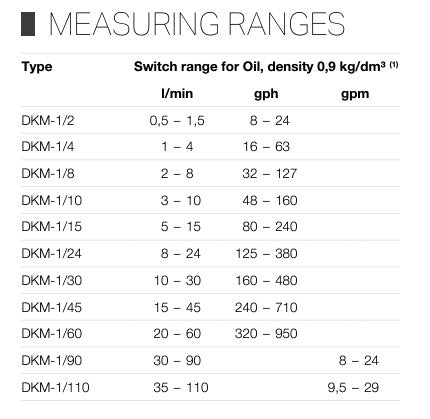

  • Ranges for oils from 0.5 up to 110 LPM (oil)
  • Normally Open (SPST) or Change-Over Contact (SPDT) Output
  • Options include: EX-Proof to ATEX; High Temperature
